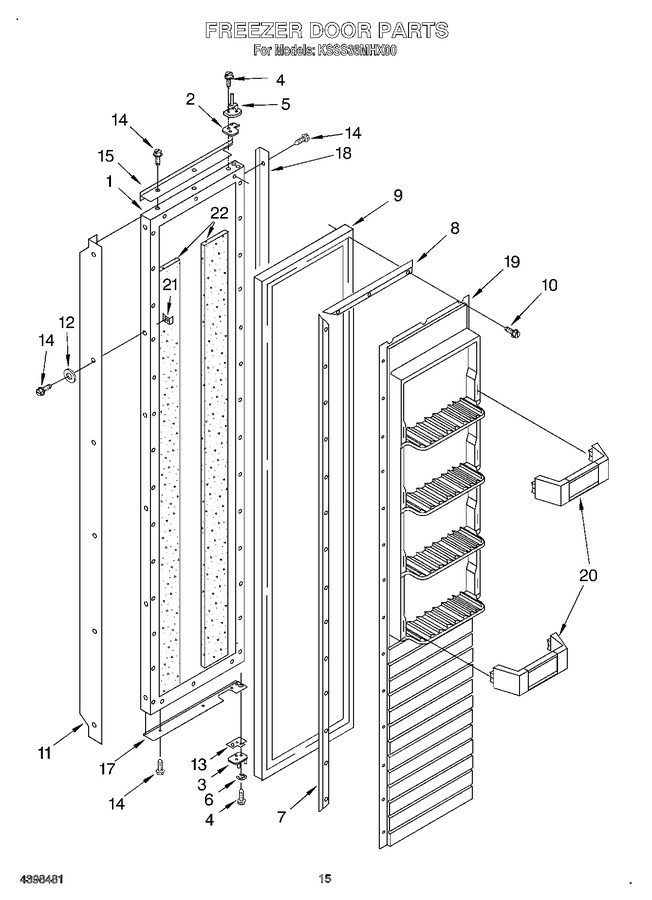

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003876		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	2004520		Spacer-door, Top		Appelez-nous	-
3	2004524		Hinge, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
5	2005329		Hinge, Top		Appelez-nous	-
6	2004881		Retaining Ring, Door-closure		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112538		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2005529		Door Gasket, Magnetic		Appelez-nous	-
10	W11624204		Screw (34)   (Replaces: 486194)				$ 14.02
11	2005942		Handle, Door		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2004549		Door, Spacer		Appelez-nous	-
14	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.79
15	2005019		Trim (top)		Appelez-nous	-
17	2004560		Trim (bottom)		Appelez-nous	-
18	2005962		Trim (side)		Appelez-nous	-
19	2000177		Panel, Interior Door		Appelez-nous	-
20	2003127		Shelf Bin (4)		Appelez-nous	-
21	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
22	2005610		Seal		Appelez-nous	-
