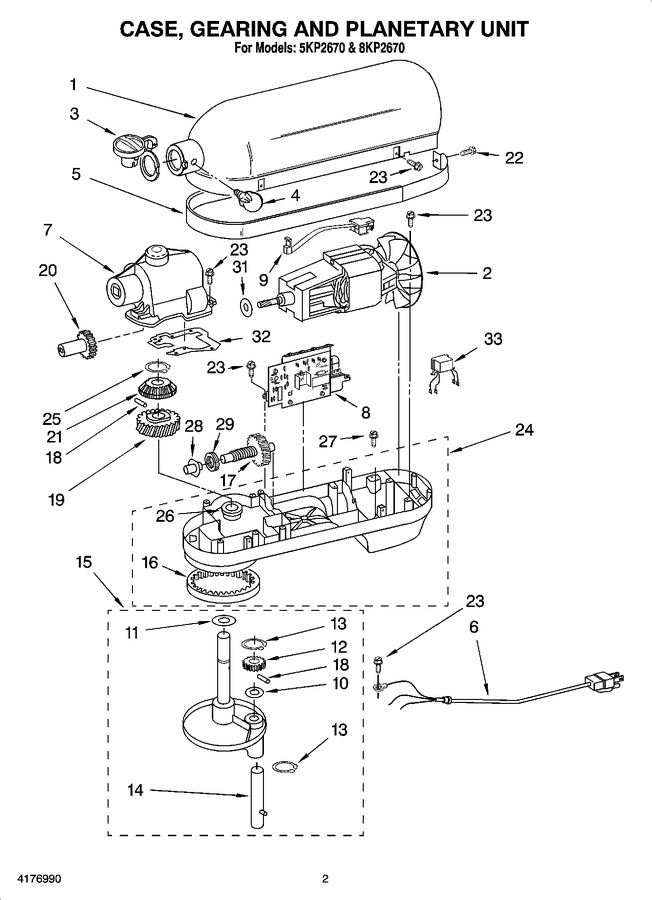

01 - Case, Gearing And Planetary Unit
02 - Base And Pedestal Unit And Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Gearcase Motor Housing |
|
$ 88.20 | |||||
| 2 | 9706034 | Motor (10 Tooth) (international) |
|
- | |||||
| 2 | 9706549 | Motor (10 Tooth) (international) |
|
- | |||||
| 2 | WPW10247536 | Motor (10 Tooth) (taiwan Motor (8 Tooth) (serial Numbers Wl18 - Wl45)) (Replaces: 9706548) |
|
Immediately | $ 125.65 | ||||
| 2 | 9706251 | Motor (10 Tooth) (taiwan) |
|
- | |||||
| 3 | W11123129 | Cap, Attachemnt Hub (hinged) (Replaces: 9703315) |
|
$ 19.69 | |||||
| 4 | WP9709194 | Thumb Screw (Replaces: 240374) |
|
Immediately | $ 20.14 | ||||
| 5 | 9706075 | Band, Trim |
|
- | |||||
| 6 | 9706063 | Power Cord (international) |
|
- | |||||
| 6 | 9706065 | Power Cord (taiwan) |
|
- | |||||
| 6 | 9703564 | Power Cord (s/n Wl18 - Wp18) |
|
- | |||||
| 6 | 9706064 | Power Cord (australia) |
|
- | |||||
| 6 | 9703565 | Power Cord (s/n Wl18 - Wl37) |
|
$ 31.14 | |||||
| 7 | 8212396 | Transmission Housing (Replaces: 9703671) |
|
Immediately | $ 62.13 | ||||
| 8 | WP9706648 | Taiwan (Replaces: 9707511) |
|
Immediately | $ 109.97 | ||||
| 8 | 9707510 | Control Assembly |
|
- | |||||
| 9 | WP9706648 | Sensor, Hall Effect (Replaces: 9703312) |
|
Immediately | $ 109.97 | ||||
| 10 | WP9706090 | Washer (Replaces: 9706090) |
|
$ 5.04 | |||||
| 11 | W11084660 | Washer, Fiber (Replaces: 9703434) |
|
Immediately | $ 4.94 | ||||
| 12 | W11133646 | Gear, Pinion (Replaces: 9703340) |
|
Immediately | $ 8.47 | ||||
| 13 | WP9703438 | Retaining Clip (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 14 | 9703314 | Agitator Shaft |
|
- | |||||
| 15 | WP9708172 | Planetary Assembly (Replaces: 9706042) |
|
Immediately | $ 73.84 | ||||
| 15 | WP9708172 | Taiwan (Replaces: 9703613) |
|
Immediately | $ 73.84 | ||||
| 16 | W11181966 | Gear, External (Replaces: 9703339) |
|
$ 14.82 | |||||
| 17 | WP9709231 | Worm Gear (Replaces: 9706770) |
|
Immediately | $ 55.55 | ||||
| 17 | WP9709231 | (for Use With 8 Tooth Motors) (Replaces: 9703446) |
|
Immediately | $ 55.55 | ||||
| 18 | WP9707223 | Retaining Pin (Replaces: 4161950) |
|
Immediately | $ 5.08 | ||||
| 19 | W11086780 | Gear, Worm Follower (Replaces: 9703543) |
|
Immediately | $ 19.02 | ||||
| 20 | W11192795 | Gear, Attachment Hub Bevel (Replaces: 9703338) |
|
Immediately | $ 23.38 | ||||
| 21 | W11192795 | Gear, Bevel (Replaces: 9703337) |
|
Immediately | $ 23.38 | ||||
| 22 | WP3196170 | Screw, 6-32 X 1/4 (Replaces: 3400617) |
|
$ 7.55 | |||||
| 23 | WP3400814 | Screw, 8-32 X 5/8 (Replaces: 3400814) |
|
$ 4.62 | |||||
| 24 | 9703313 | Lower Gear Case |
|
- | |||||
| 25 | WP9703680 | Retaining Clip (Replaces: 9703680) |
|
Immediately | $ 4.99 | ||||
| 26 | WP16897 | Bearing, Lower Center (Replaces: 16897) |
|
Immediately | $ 5.10 | ||||
| 27 | W10913677 | Screw (3) 1/4 - 20 X 3/4 (Replaces: 3400200) |
|
$ 4.64 | |||||
| 28 | WPW10170080 | Bearing (front) (Replaces: 9703560) |
|
Immediately | $ 5.14 | ||||
| 28 | WPW10170081 | Bearing (rear) (Replaces: 9703570) |
|
Immediately | $ 5.14 | ||||
| 29 | WP9703445 | Thrust Bearing (Replaces: 9703445) |
|
Immediately | $ 9.26 | ||||
| 31 | WP9706247 | Seal, Motor Shaft (Replaces: 9706247) |
|
Immediately | $ 4.84 | ||||
| 32 | 8212396 | Gasket, Transmission (Replaces: 9703381) |
|
Immediately | $ 62.13 | ||||
| 33 | 9706073 | Rf Filter |
|
- |
