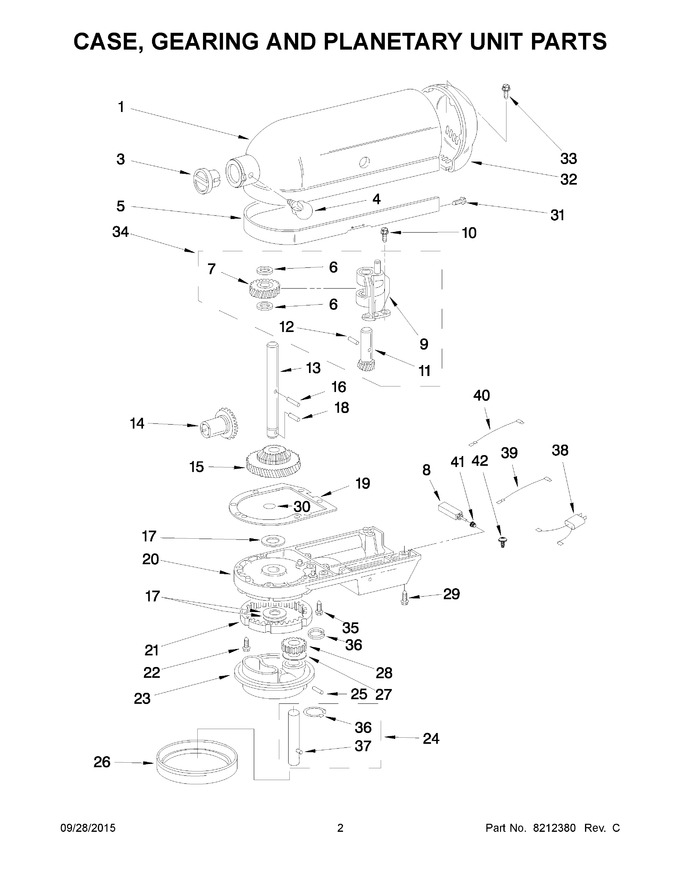

02 - Case, Gearing And Planetary Unit Parts
03 - Base And Pedestal Unit Parts
04 - Motor And Control Unit Parts
05 - Color Variation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Gearcase Motor Housing |
|
- | |||||
| 3 | W11831059 | Cap, Attachment Hub (chrome) (Replaces: 242765-2) |
|
Immediately | $ 15.12 | ||||
| 4 | WP9709194 | Thumb Screw (black) (Replaces: 9709194) |
|
Immediately | $ 20.14 | ||||
| 5 | N/P | Band, Trim (refer To Color Variation Parts Page) |
|
- | |||||
| 6 | WPW10323373 | Washer (Replaces: 3180161) |
|
Immediately | $ 4.72 | ||||
| 7 | WPW10112253 | Gear, Worm (Replaces: W10112253) |
|
Immediately | $ 13.47 | ||||
| 8 | 241287-1 | Breaker, Circuit |
|
$ 118.10 | |||||
| 9 | W11082541 | Bracket, Worm Gear And Bearing (Replaces: 240308) |
|
$ 14.78 | |||||
| 10 | W11097298 | Screw (Replaces: 3400022) |
|
- | |||||
| 11 | WP240210-2 | Gear, Pinion And Shaft (Replaces: 240210-2) |
|
Immediately | $ 11.88 | ||||
| 12 | WP9705444 | Pin, Grooved (Replaces: 9705444) |
|
Immediately | $ 4.84 | ||||
| 13 | WP240026 | Shaft, Vertical Center (Replaces: 240026) |
|
Immediately | $ 9.14 | ||||
| 14 | W11192794 | Gear, Attachment Hub (Replaces: 9705130) |
|
Immediately | $ 40.69 | ||||
| 15 | W11192794 | Gear, Center Bevel Pinion (Replaces: 9709627) |
|
Immediately | $ 40.69 | ||||
| 16 | WP9707223 | Pin, Agitator Shaft (Replaces: 240018-1) |
|
Immediately | $ 5.08 | ||||
| 17 | WPW10323378 | Washer (Replaces: 3180163) |
|
Immediately | $ 10.83 | ||||
| 18 | W11762673 | Pin, Grooved (Replaces: 9705443) |
|
Immediately | $ 4.25 | ||||
| 19 | W11805888 | Gasket, Transmission (Replaces: 4162324) |
|
Immediately | $ 46.84 | ||||
| 20 | N/P | Lower Gear Case (refer To Color Variation Parts Page) |
|
- | |||||
| 21 | W11340106 | Gear, Internal (Replaces: 9703904) |
|
$ 18.56 | |||||
| 22 | VT9 | Screw (Replaces: 103994) |
|
$ 37.35 | |||||
| 23 | N/P | Planetary (refer To Color Variation Parts Page) |
|
- | |||||
| 24 | WP243368 | Shaft, Agitator (Replaces: 3184052) |
|
Immediately | $ 17.29 | ||||
| 25 | WP9707223 | Pin, Agitator Shaft (Replaces: 240018-1) |
|
Immediately | $ 5.08 | ||||
| 26 | WP240285 | Ring, Planetary Drip (standard) (Replaces: 240285) |
|
Immediately | $ 9.06 | ||||
| 27 | WP9706090 | Washer (Replaces: 9706090) |
|
$ 5.04 | |||||
| 28 | W11133645 | Gear, Pinion (Replaces: 9703903) |
|
$ 4.92 | |||||
| 29 | WP3400025 | Screw (Replaces: 3400025) |
|
$ 4.62 | |||||
| 30 | WP67500-55 | O Ring (Replaces: 67500-55) |
|
Immediately | $ 4.52 | ||||
| 31 | WP313808 | Screw (Replaces: 311932) |
|
$ 8.30 | |||||
| 32 | N/P | Cover, End (refer To Color Variation Parts Page) |
|
- | |||||
| 33 | WP241877 | Screw (Replaces: 4162914) |
|
$ 4.15 | |||||
| 34 | WP240309-2 | Worm Gear Bracket And Gear Assembly (Replaces: 240309-2) |
|
Immediately | $ 39.53 | ||||
| 35 | WP9708653 | Screw, Machine (Replaces: 3400026) |
|
$ 4.50 | |||||
| 36 | WP9703438 | Ring, Retaining (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 37 | W11664709 | Pin, Groove (Replaces: 9704677) |
|
Immediately | $ 6.75 | ||||
| 38 | 4176340 | Filter, Rfi (Replaces: 9705132) |
|
- | |||||
| 39 | 9702309 | Lead (circuit Breaker) |
|
- | |||||
| 40 | W11821371 | Lead (breaker To Control Board) (Replaces: 9704827) |
|
$ 8.18 | |||||
| 41 | W11783689 | Button, Reset (Replaces: 9701663) |
|
- | |||||
| 42 | W11245710 | Screw (Replaces: 3400834) |
|
Immediately | $ 14.75 |
