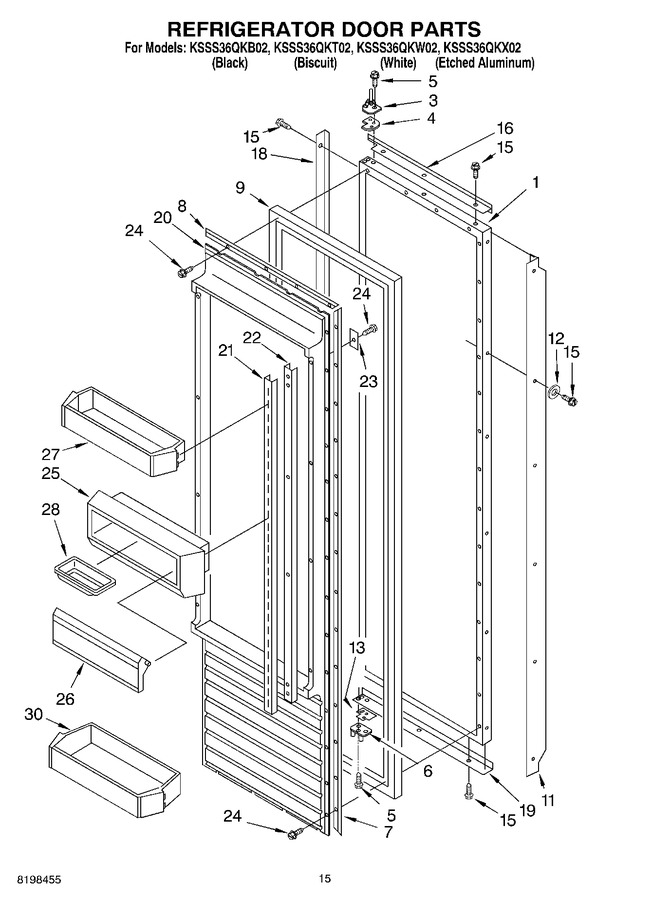

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2259180		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 297.62
4	2256381		Spacer-door, Top				$ 24.49
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
6	2302878		Hinge Assembly, Bottom   (Replaces: 2256389)			Immediately	$ 86.68
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188497		Door Gasket, Magnetic		Appelez-nous	-
11	2005952		Handle, Door (etched Aluminum)		Appelez-nous	-
11	2005953		Handle, Door (white)		Appelez-nous	-
11	2005956		Handle, Door (black)		Appelez-nous	-
11	2005955		Handle, Door (biscuit)		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2257637		Door Spacer, Bottom				$ 15.45
15	W10825422		Screw, 8-15 X .500 (white)   (Replaces: 8281251)				$ 10.82
15	W10851443		Screw, 8-15 X .500 (black)   (Replaces: 8281252)			Immediately	$ 7.69
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 10.88
15	8281253		Screw, 8-15 X .500 (biscuit)		Appelez-nous	-
16	2005740		Trim (top) (biscuit)		Appelez-nous	-
16	2005013		Trim (top) (white)		Appelez-nous	-
16	2005839		Trim, Top (black)		Appelez-nous	-
16	100005988		Trim, Top (etched Aluminum)   (Replaces: 2005010)				$ 13.51
18	2005968		Trim (side) (white)		Appelez-nous	-
18	2005967		Trim, Side (etched Aluminum)		Appelez-nous	-
18	2005970		Trim (side) (biscuit)		Appelez-nous	-
18	2005971		Trim, Side (black)		Appelez-nous	-
19	2215993B		Trim (bottom) (black)		Appelez-nous	-
19	2215993		Trim (bottom) (etched Aluminum)		Appelez-nous	-
19	2215993W		Trim (bottom) (white)		Appelez-nous	-
19	2215993T		Trim (bottom) (biscuit)		Appelez-nous	-
20	1113952		Panel, Interior Door		Appelez-nous	-
21	1113951		Ladder, Shelf (2)		Appelez-nous	-
22	1112530		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw   (Replaces: 486194)				$ 14.02
25	1112720		Bin, Utility		Appelez-nous	-
26	2003463		Door, Utility Bin		Appelez-nous	-
27	1112745		Door Shelf		Appelez-nous	-
28	2165792		Butter Tray		Appelez-nous	-
30	2188331		Shelf, Gallon Door		Appelez-nous	-
