SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Shelf


04 - Refrigerator Liner


05 - Control Panel


06 - Top Grille And Unit Cover


07 - Refrigerator Shelf


08 - Freezer Liner And Air Flow


09 - Motor And Ice Container


10 - Refrigerator Door


11 - Freezer Door


12 - Dispenser Front

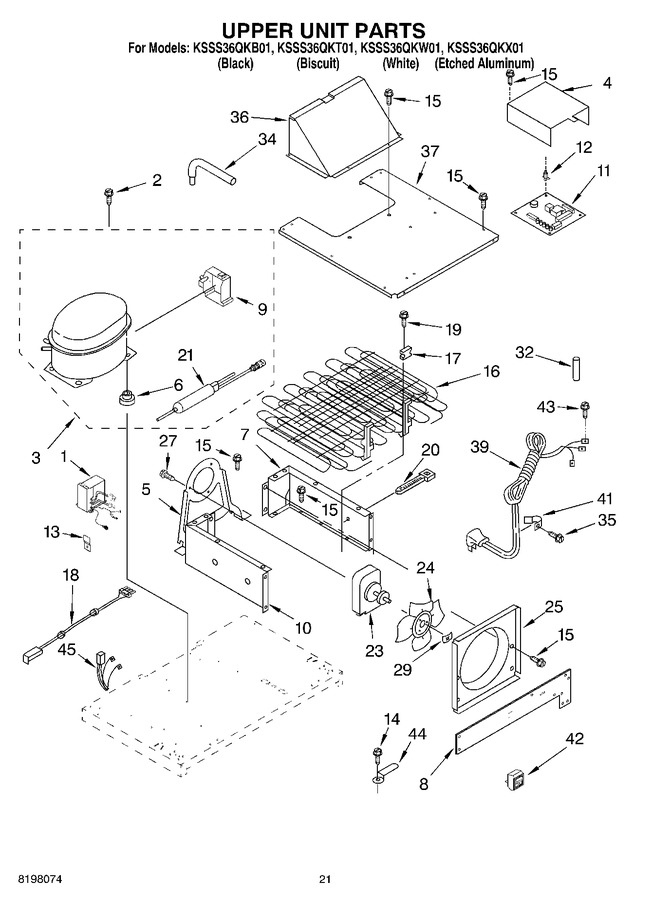

13 - Upper Unit


14 - Lower Unit And Tube


15 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629033		Inverter Box   (Replaces: 2209324)			Immediately	$ 443.45
2	876811		Screw, Compressor Mounting (4)   (Replaces: 489373)				$ 7.79
3	876765		Tube Kit			Immediately	$ 90.65
3	W10841139		Compressor (includes Items 6, 9 & 21) (also Order   (Replaces: 2208937)			Immediately	$ 505.51
4	2199929		Housing, Control Board		Appelez-nous	-
5	2215641		Bracket, Fan Motor		Appelez-nous	-
6	876811		Grommet, Mounting   (Replaces: 1100826)				$ 7.79
7	2209038		Shroud, Condenser (right)		Appelez-nous	-
8	2215665		Panel, Condenser Front		Appelez-nous	-
9	2215676		Terminal Cover				$ 94.36
10	2209037		Shroud, Condenser (left)		Appelez-nous	-
11	W10823805		Control Board   (Replaces: 2254739)				$ 608.36
12	WP2203075		Spacer (5)   (Replaces: 2203075)			Immediately	$ 18.81
13	2256328		Bracket, Inverter Box   (Replaces: 2209493)		Appelez-nous	-
14	486899		Screw		Appelez-nous	-
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
16	2209062		Condenser		Appelez-nous	-
17	943447		Grommet (4)		Appelez-nous	-
18	2187422		Wire, Jumper		Appelez-nous	-
19	487522		Screw		Appelez-nous	-
20	WPW10339879		Wire Tie (2)   (Replaces: 857547)				$ 8.30
21	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 57.13
23	W10181323		Motor, Fan   (Replaces: 2206036)			Immediately	$ 303.29
24	2190685		Blade, Fan				$ 52.00
25	2003169		Orifice, Fan		Appelez-nous	-
27	8281160		Screw		Appelez-nous	-
29	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
32	2000645		Sleeve, Condenser		Appelez-nous	-
34	W10528578		Process, Tube   (Replaces: 2194319)				$ 39.82
35	W11624204		Screw   (Replaces: 486194)				$ 14.72
36	2209495		Cover, Fan		Appelez-nous	-
37	2215628		Cover, Condenser		Appelez-nous	-
39	2003381		Service Cord		Appelez-nous	-
41	549193		Clamp-cord				$ 14.06
42	WP2266802		Switch, Power Disconnect   (Replaces: 1113229)				$ 109.08
43	00487294		Screw, Ground   (Replaces: 487294)				$ 175.09
44	653035		Clip, Cord Plug		Appelez-nous	-
45	876764		Valve, Access(3/16``)			Immediately	$ 95.92
45	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
45	978028		Valve, Access (1/2)		Appelez-nous	-
45	978029		Valve Access (5/8``)				$ 93.85
45	978030		Valve, Access (3/4``)				$ 137.25
45	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
45	2187417		Wiring Harness, Unit Compartment		Appelez-nous	-
45	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
