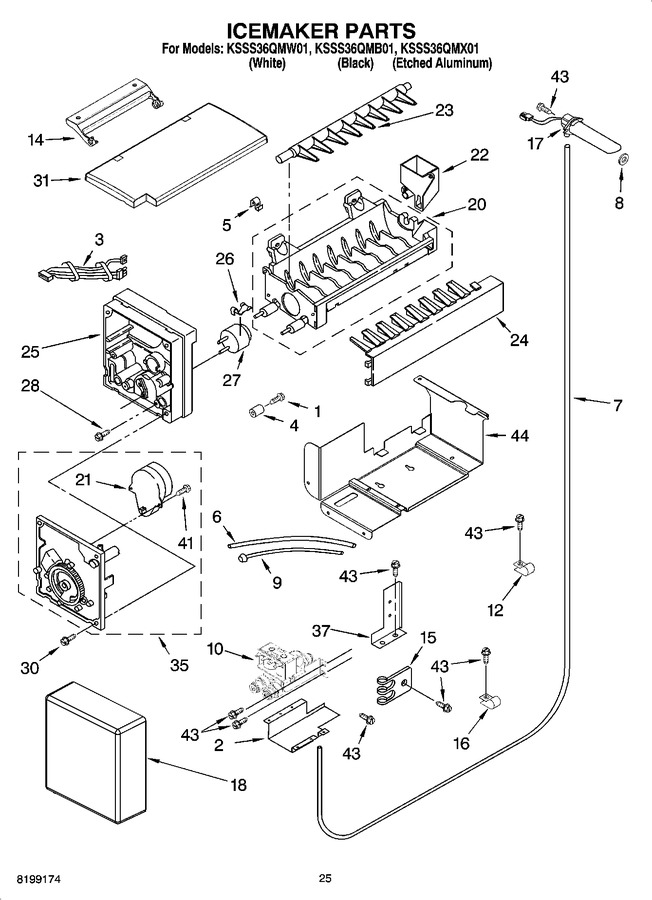

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2198641 | Screw (Replaces: 2198641) |
|
$ 7.55 | |||||
| 2 | 2300104 | Cover-bottom, Electrical |
|
- | |||||
| 3 | 2187622 | Wire Assembly, Icemaker |
|
- | |||||
| 4 | 2252354 | Spacer |
|
- | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 6 | 2214613 | Tube, Filter Inlet |
|
- | |||||
| 7 | W10823511 | Water Inlet Tube Assembly (Replaces: 2252393) |
|
Immediately | $ 32.41 | ||||
| 8 | 2302758 | Seal Gasket |
|
- | |||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2302719) |
|
Immediately | $ 33.15 | ||||
| 10 | 2307811 | Valve, Solenoid |
|
$ 115.56 | |||||
| 12 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 11.54 | |||||
| 14 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 7.55 | |||||
| 15 | WP488366 | Clamp, Nylon Valve (Replaces: 2208136) |
|
$ 11.92 | |||||
| 16 | 488937 | Clamp, Tube |
|
- | |||||
| 17 | W10460127 | Tube, Water Inlet (Replaces: 2259417) |
|
$ 208.25 | |||||
| 18 | 2257538 | Cover |
|
- | |||||
| 20 | WPW10122550 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: 2212351) |
|
$ 217.64 | |||||
| 21 | W10190935 | Motor (Replaces: 628398) |
|
Immediately | $ 110.07 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 53.75 | |||||
| 23 | 626753 | Ejector (Replaces: 2212320) |
|
$ 14.64 | |||||
| 24 | W10297245 | Ice Striper (Replaces: 2212318) |
|
$ 76.63 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.60 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 114.64 | |||||
| 28 | 8533917 | Screw |
|
$ 14.04 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | W10504752 | Cover, Icemaker (Replaces: 2222962) |
|
$ 90.78 | |||||
| 35 | W10190935 | Module Assembly (includes Items 21 & 41) (Replaces: 628399) |
|
Immediately | $ 110.07 | ||||
| 37 | 2306081 | Water Valve Mounting Bracket |
|
- | |||||
| 41 | 489136 | Screw, (2) |
|
$ 10.80 | |||||
| 43 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 44 | 2300167 | Bracket, Icemaker Mounting |
|
- | |||||
| 100 | 2222958 | Ice Container Assembly |
|
- | |||||
| 100 | WPW10277449 | Complete Icemaker Assembly (Replaces: 2306089) |
|
$ 276.19 | |||||
| 100 | N/A | (optional Parts Only) |
|
- | |||||
| 100 | 2220864 | Front Panel Kit (white) |
|
- | |||||
| 100 | 2220867 | Front Panel Kit (black) |
|
- | |||||
| 100 | 2220873 | Front Panel Kit (stainless Steel) |
|
- | |||||
| 100 | 978849 | Static Cleaner, Black Panel |
|
$ 15.82 |
