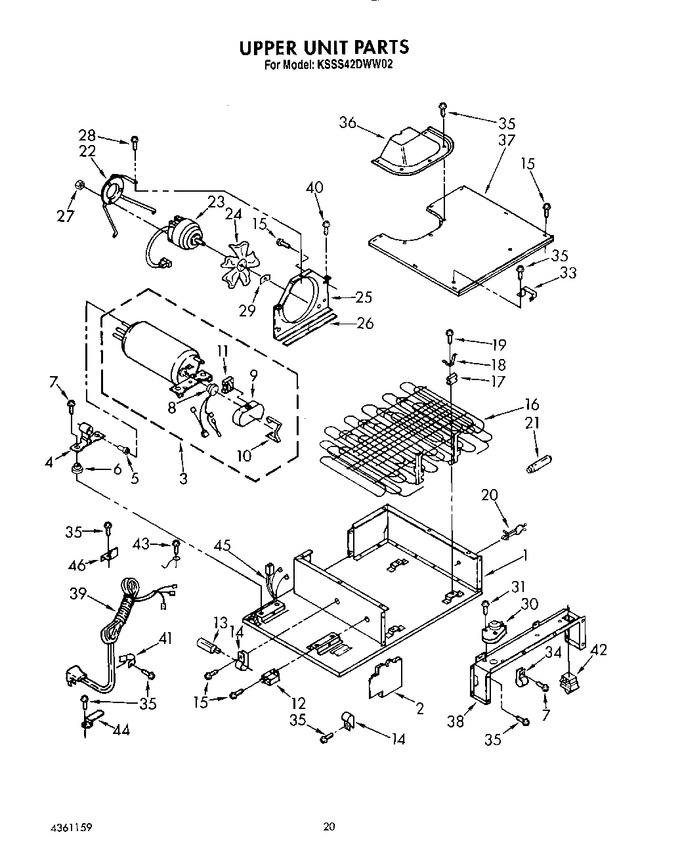

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1113005		Assembly, Unit Base		Appelez-nous	-
2	1113386		Assembly, Sound Barrier		Appelez-nous	-
3	4210577		Compressor (includes Items 8, 9, 10 & 11) (also Order 876765 Tube Kit)		Appelez-nous	-
4	1105220		Bracket, Mounting		Appelez-nous	-
5	1105219		Grommet, Compressor Bracket		Appelez-nous	-
6	1105200		Grommet, Mounting		Appelez-nous	-
7	489334		Screw		Appelez-nous	-
8	2001232		Overload		Appelez-nous	-
9	1105221		Terminal Cover		Appelez-nous	-
10	1105222		Strap, Cover		Appelez-nous	-
11	1108066		Relay		Appelez-nous	-
12	WPW10662129		Running, Capacitor   (Replaces: 1118576)			Immediately	$ 58.86
13	1108065		Capacitor, Start		Appelez-nous	-
14	1108033		Clamp		Appelez-nous	-
15	WP965173		Screw, 8 X 3/8   (Replaces: 487869)			Immediately	$ 10.72
16	1113015		Condenser		Appelez-nous	-
17	943447		Grommet (4)		Appelez-nous	-
18	1113019		Clamp (4)		Appelez-nous	-
19	487522		Screw, 8-32 X 5/8 (4)		Appelez-nous	-
20	1113228		Wire Tie (2)		Appelez-nous	-
21	1108023		Drier		Appelez-nous	-
22	1113083		Mounting Bracket, Motor		Appelez-nous	-
23	1113081		Motor, Fan		Appelez-nous	-
24	1113082		Blade, Fan		Appelez-nous	-
25	2000190		Orifice, Fan		Appelez-nous	-
26	1113303		Gasket, Orifice		Appelez-nous	-
27	WP488130		Nut (3)   (Replaces: 488130)				$ 6.97
28	WPW10141645		Screw, 8 X 1/2 (3)   (Replaces: 489084)				$ 7.67
29	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
30	CC901		Defrost Timer (10 Hour)   (Replaces: 1127570)			Immediately	$ 58.27
31	WP3388228		Screw, 6-20 X 3/8   (Replaces: 488911)				$ 6.95
33	1113066		Clamp, Tube (2)		Appelez-nous	-
34	489348		Clamp-nylon		Appelez-nous	-
35	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
36	1113075		Cover, Fan		Appelez-nous	-
37	1113028		Cover, Condenser		Appelez-nous	-
38	1113076		Extension, Housing		Appelez-nous	-
39	937360		Cord, Service		Appelez-nous	-
40	489368		Screw		Appelez-nous	-
41	1113162		Clamp, Cord (2)		Appelez-nous	-
42	WP2266802		Switch, Power Disconnect   (Replaces: 1113229)				$ 103.89
43	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
44	653035		Clip, Cord Plug		Appelez-nous	-
45	1113748		Wiring Harness, Unit Compartment		Appelez-nous	-
46	4210569		Front Panel Kit (black)		Appelez-nous	-
46	1113039		Stop		Appelez-nous	-
46	978026		Valve, Access (5/16``)			Immediately	$ 128.09
46	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
46	978028		Valve, Access (1/2)		Appelez-nous	-
46	978029		Valve Access (5/8``)				$ 93.85
46	978030		Valve, Access (3/4``)				$ 130.71
46	876764		Valve, Access(3/16``)			Immediately	$ 91.35
46	4318419		Top Grille Trim Kit (8``)		Appelez-nous	-
46	4318418		Top Grille Trim Kit (7-1/2``)		Appelez-nous	-
46	4210570		Front Panel Kit (white)		Appelez-nous	-
46	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
46	4211160		Front Panel Kit (almond)		Appelez-nous	-
46	4210594		Front Panel Kit (stainless Steel)		Appelez-nous	-
	LIT1113982		Use & Care Guide		Appelez-nous	-
	LIT4361159		Parts List		Appelez-nous	-
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2000492		Installation Instructions		Appelez-nous	-
	LIT2000936		Service & Wiring Sheet		Appelez-nous	-
	LIT2000144		Energy Label		Appelez-nous	-
