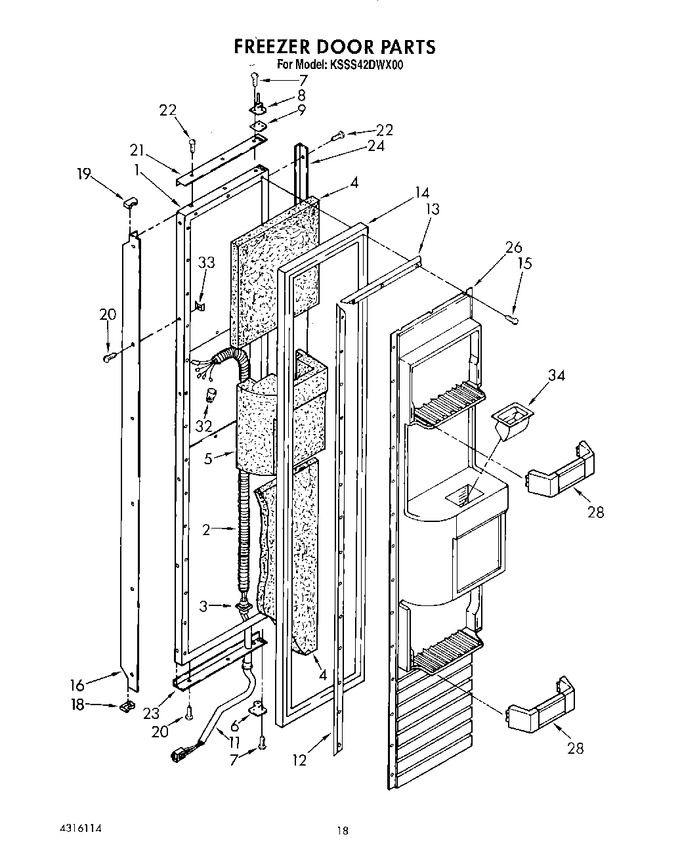

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1113927 | Exterior Door Panel, Freezer (also Order Item 4) |
|
- | |||||
| 2 | 1112997 | Tube, Wiring |
|
- | |||||
| 3 | 1112928 | Retainer, Tube |
|
- | |||||
| 4 | 876029 | Kit, Foam Slab (required When Replacing Exterior Door Panel) |
|
- | |||||
| 5 | 1112978 | Insulation, Dispenser |
|
- | |||||
| 6 | 1112063 | Hinge, Bottom L.s. |
|
- | |||||
| 7 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 8 | 1112164 | Hinge, Top L.s. |
|
- | |||||
| 9 | 1112940 | Spacer Plate Expansion (2) |
|
- | |||||
| 11 | 1112951 | Wiring Harness, Freezer Door |
|
- | |||||
| 12 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 13 | 1112540 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 14 | 2188496A | Door Gasket, Magnetic (Replaces: 1112547) |
|
$ 349.40 | |||||
| 15 | WP489069 | Screw, 7 X 1/2 (34) (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 16 | 1113816 | Handle, Door |
|
- | |||||
| 18 | 1113831 | End Cap (bottom) |
|
- | |||||
| 19 | 1113830 | End Cap (top) |
|
- | |||||
| 20 | WP488729 | Screw, 5-15 X 1/2 (Replaces: 487052) |
|
Immediately | $ 8.28 | ||||
| 21 | 1113825 | Trim (top) |
|
- | |||||
| 22 | 489112 | Screw, 6-32 X 1/2 |
|
- | |||||
| 23 | 1113828 | Trim (bottom) |
|
- | |||||
| 24 | 1113820 | Trim (side) |
|
- | |||||
| 26 | 1113946 | Panel, Interior Door |
|
- | |||||
| 28 | WP2003128 | Door Shelf, Assembly (Replaces: 1112761) |
|
$ 227.24 | |||||
| 32 | 227991 | Wire Connector |
|
- | |||||
| 33 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 34 | 1112554 | Ice Chute |
|
- |
