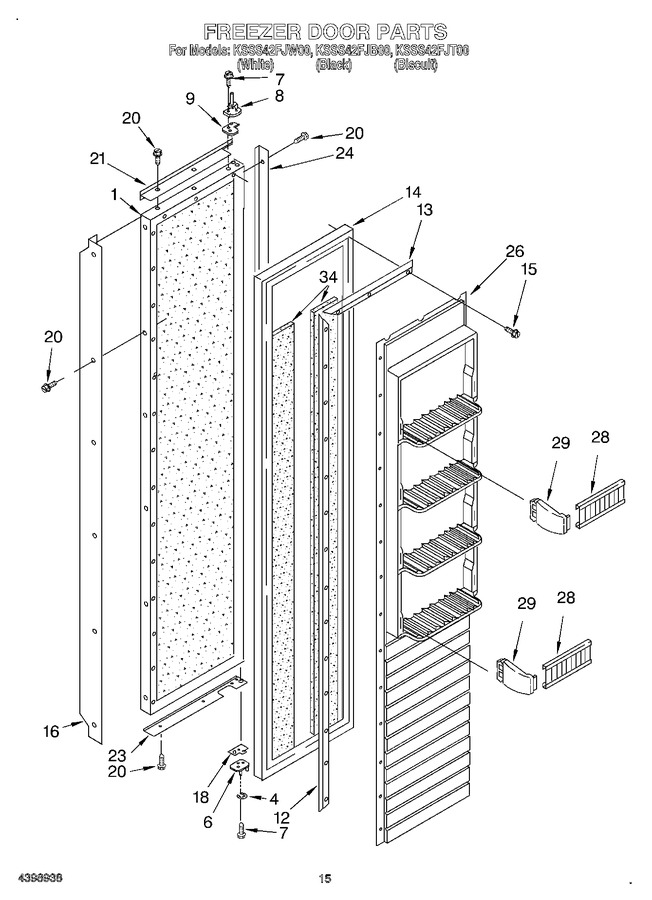

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2003877 | Freezer Door Panel (includes Insulation) |
|
- | |||||
| 4 | 2004881 | Retaining Ring, Door-closure |
|
- | |||||
| 6 | 2004524 | Hinge, Bottom |
|
- | |||||
| 7 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 8 | 2005329 | Hinge, Top |
|
- | |||||
| 9 | 2004520 | Spacer-door, Top |
|
- | |||||
| 12 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 13 | 1112540 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 14 | 2188318A | Door Gasket, Magnetic (Replaces: 2188318) |
|
$ 350.60 | |||||
| 15 | W11624204 | Screw (34) (Replaces: 486194) |
|
$ 14.72 | |||||
| 16 | 2005946 | Handle, Door (black) |
|
- | |||||
| 16 | 2005943 | Handle, Door (white) |
|
- | |||||
| 16 | 2005945 | Handle, Door (biscuit) |
|
- | |||||
| 18 | 2004549 | Door, Spacer |
|
- | |||||
| 20 | 3400878 | Screw (black) |
|
- | |||||
| 20 | 2001208 | Screw (white) |
|
- | |||||
| 20 | 3400877 | Screw (biscuit) |
|
- | |||||
| 21 | 2005023 | Trim (top) (white) |
|
- | |||||
| 21 | 2005760 | Trim (top) (biscuit) |
|
- | |||||
| 21 | 2005886 | Trim (top) (black) |
|
- | |||||
| 23 | 2209421B | Trim (bottom) (black) |
|
- | |||||
| 23 | 2209421W | Trim (bottom) (white) |
|
- | |||||
| 23 | 2209421T | Trim (bottom) (biscuit) |
|
- | |||||
| 24 | 2005965 | Trim (side) (biscuit) |
|
- | |||||
| 24 | 2005963 | Trim (side) (white) |
|
- | |||||
| 24 | 2005966 | Trim (side) (black) |
|
- | |||||
| 26 | 2209031 | Panel, Interior Door |
|
- | |||||
| 28 | 2188515 | Shelf Bin |
|
- | |||||
| 29 | 2209134 | Trim, End Cap (right Side) |
|
$ 10.05 | |||||
| 29 | 2208954 | Trim, Endcap (left Side) |
|
$ 5.84 | |||||
| 34 | 2005610 | Seal |
|
- |
