Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2220890 Solid Shelf Appelez-nous -
2 2220847 Front, Ice Compartment Appelez-nous -
3 1113637 Shelf, Fixed (2) Appelez-nous -
3 1113565 Shelf, Deep Appelez-nous -
4 2208194 Basket Appelez-nous -
5 2220844 Trim, Basket Appelez-nous -
6 2208198 Slide, Basket (right Side) Appelez-nous -
6 2208197 Slide, Basket (left Side) Appelez-nous -
7 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

8 2003046 Hole Plug, Front Special Order $ 78.19

9 2003047 Hole Plug, Rear Special Order $ 19.73

10 2208907 Ice Container Special Order $ 91.19

11 2003044 Front Cover Special Order $ 116.24

12 2002721 Slide, Container (left Side) Appelez-nous -
12 2002720 Slide, Container (right Side) Appelez-nous -
13 WP488787 Screw   (Replaces: 488886) Special Order $ 11.26

14 1113169 Stop, Roller Special Order $ 11.28

15 2188212 Roller Appelez-nous -
16 2174478 Eyelet, Roller Special Order $ 5.70

17 WPW10272364 Screw   (Replaces: 2003478) In-Stock Immediately $ 11.36


    View Diagram in Separate Window     Print Icon   Print Part List

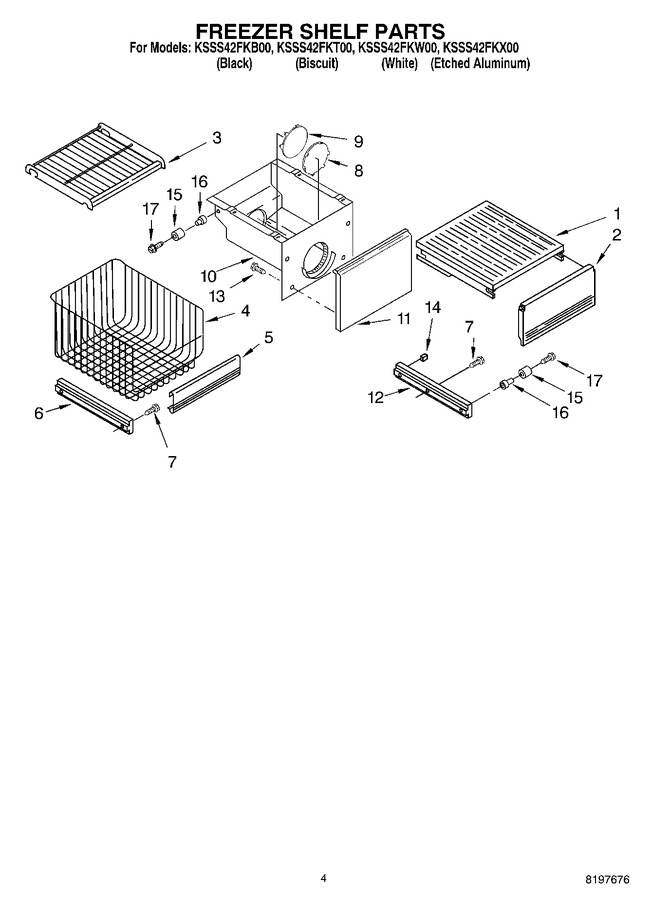

Diagram for KSSS42FKB00
