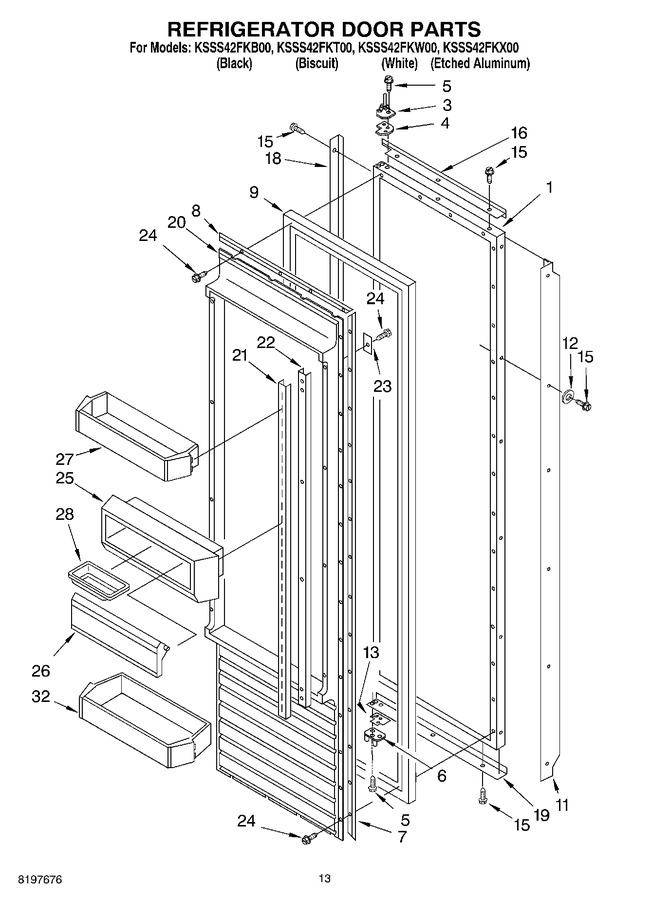

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215988		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
3	2220922		Hinge Assembly, Top		Appelez-nous	-
4	2004520		Spacer-door, Top		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
6	2220809		Hinge Assembly, Bottom		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112541		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188498		Door Gasket, Magnetic		Appelez-nous	-
11	2005952		Handle, Door (etched Aluminum)		Appelez-nous	-
11	2005953		Handle, Door (white)		Appelez-nous	-
11	2005956		Handle, Door (black)		Appelez-nous	-
11	2005955		Handle, Door (biscuit)		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2004549		Door, Spacer Bottom		Appelez-nous	-
15	W10825422		Screw (white)   (Replaces: 8281251)				$ 10.82
15	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.69
15	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 10.88
15	8281253		Screw (biscuit)		Appelez-nous	-
16	2005757		Trim (top) (biscuit)		Appelez-nous	-
16	2005014		Trim (top) (white)		Appelez-nous	-
16	2005840		Trim (top) (black)		Appelez-nous	-
16	2005011		Trim (top) (etched Aluminum)		Appelez-nous	-
18	2005968		Trim (side) (white)		Appelez-nous	-
18	2005967		Trim, Side (etched Aluminum)		Appelez-nous	-
18	2005970		Trim (side) (biscuit)		Appelez-nous	-
18	2005971		Trim, Side (black)		Appelez-nous	-
19	2209418B		Trim (bottom) (black)		Appelez-nous	-
19	2209418		Trim (bottom) (etched Aluminum)		Appelez-nous	-
19	2209418W		Trim (bottom) (white)		Appelez-nous	-
19	2209418T		Trim (bottom) (biscuit)		Appelez-nous	-
20	1113953		Panel, Interior Door		Appelez-nous	-
21	1113951		Ladder, Shelf (2)		Appelez-nous	-
22	1112530		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw   (Replaces: 486194)				$ 14.02
25	1112721		Bin, Utility		Appelez-nous	-
26	2003464		Door, Utility Bin		Appelez-nous	-
27	1113973		Door Shelf (3)				$ 66.71
28	2165792		Butter Tray		Appelez-nous	-
32	2188332		Shelf, Gallon Door		Appelez-nous	-
