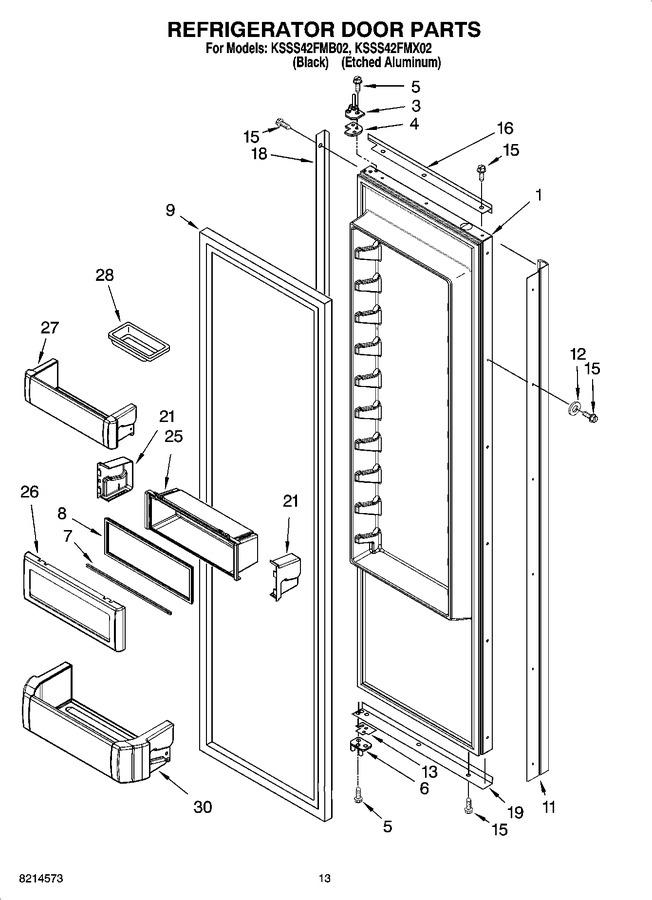

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2252330 | Refrigerator Door Panel (includes Item 9) |
|
- | |||||
| 3 | W11724512 | Hinge Assembly, Top (Replaces: 2266854) |
|
$ 312.50 | |||||
| 4 | 2256381 | Spacer-door, Top |
|
$ 24.49 | |||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom |
|
Immediately | $ 91.01 | ||||
| 7 | W11448696 | Rail, Lid (Replaces: 2222796) |
|
$ 153.99 | |||||
| 8 | W11448696 | Gasket, Utility Bin (Replaces: 2222982) |
|
$ 153.99 | |||||
| 9 | WP2266902 | Door Gasket, Magnetic (Replaces: 2222811) |
|
$ 330.30 | |||||
| 11 | 2256473B | Handle, Door (black) |
|
- | |||||
| 11 | 2256473 | Handle, Door (etched Aluminum) |
|
- | |||||
| 12 | 2001230 | Washer |
|
$ 12.34 | |||||
| 13 | 2257637 | Door Spacer, Bottom |
|
$ 15.45 | |||||
| 15 | WP8281250 | Screw, 8-15 X .500 Stainless Steel (Replaces: 8281250) |
|
$ 11.42 | |||||
| 15 | W10851443 | Screw, 8-15 X .500 (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 16 | 2005840 | Trim (top) (black) |
|
- | |||||
| 16 | 2005011 | Trim (top) (etched Aluminum) |
|
- | |||||
| 18 | 2005967 | Trim, Side (etched Aluminum) |
|
- | |||||
| 18 | 2005971 | Trim, Side (black) |
|
- | |||||
| 19 | 2215994 | Trim (bottom) (etched Aluminum) |
|
- | |||||
| 19 | 2215994B | Trim (bottom) (black) |
|
- | |||||
| 21 | WPW10323172 | End Cap (right Side) (Replaces: 2222919) |
|
$ 8.60 | |||||
| 21 | WPW10323173 | End Cap (left Side) (Replaces: 2222920) |
|
$ 8.60 | |||||
| 25 | W10323042 | Bin, Utility (center) (Replaces: 2222922) |
|
$ 223.93 | |||||
| 26 | W11448696 | Door, Utility Bin (Replaces: 2222925) |
|
$ 153.99 | |||||
| 27 | W10323599 | Door Shelf (Replaces: 2222773) |
|
$ 146.61 | |||||
| 28 | 2165792 | Butter Tray |
|
- | |||||
| 30 | W10323747 | Shelf, Gallon Door (Replaces: 2222770) |
|
$ 145.36 |
