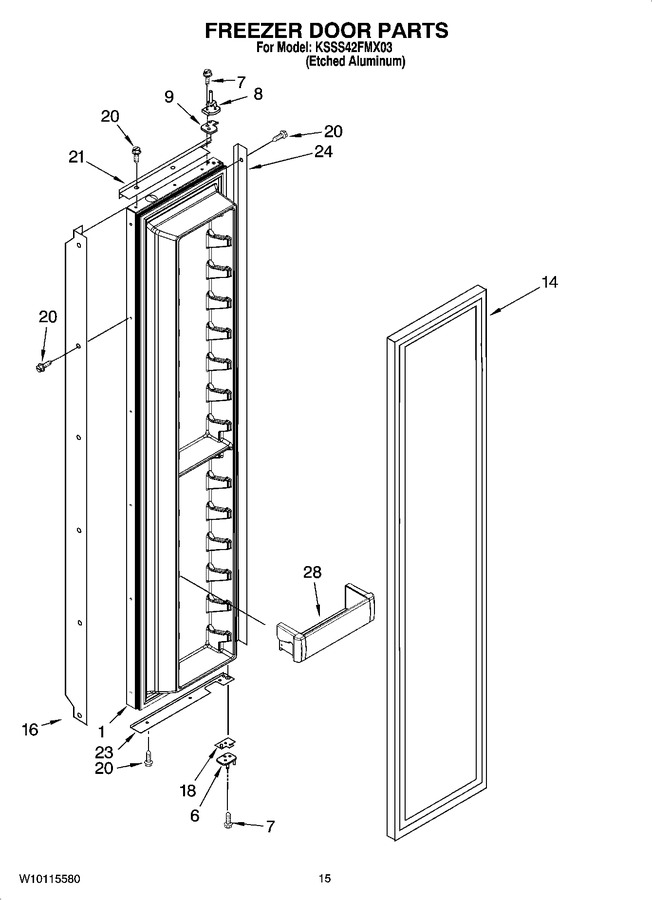

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252327		Freezer Door Panel (includes Item 14) (black)		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
14	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
16	2256472		Handle, Door (etched Aluminum)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2005020		Trim (top) (etched Aluminum)		Appelez-nous	-
23	2215985		Trim (bottom) (etched Aluminum)		Appelez-nous	-
24	2005962		Trim (side) (etched Aluminum)		Appelez-nous	-
28	W10323602		Bin, Shelf F.c.(6)   (Replaces: 2222776)				$ 98.03

    View Diagram in Separate Window       Print Part List
