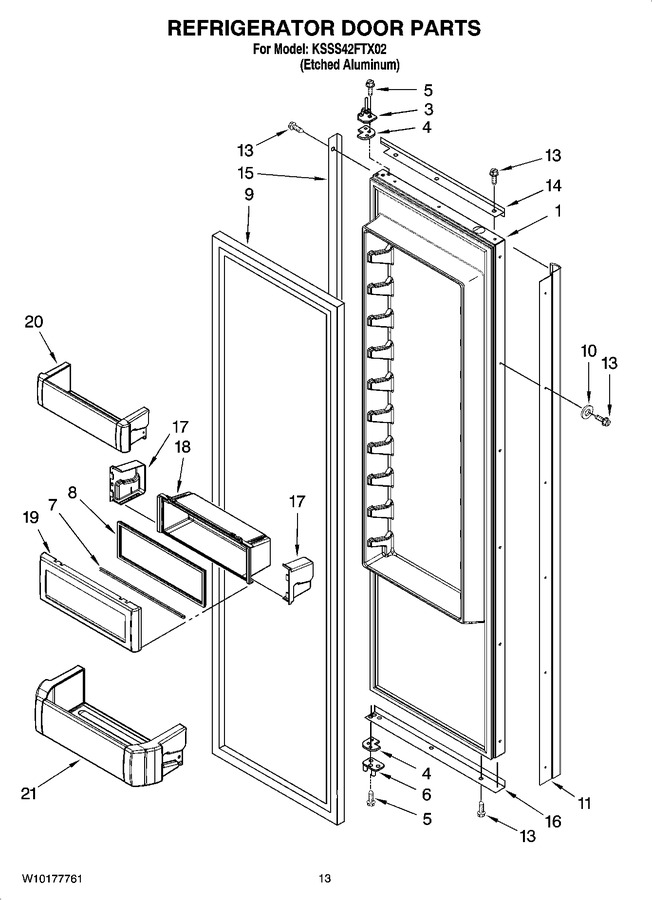

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252330		Refrigerator Door (includes 9)		Appelez-nous	-
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 312.50
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	W11448696		Rail, Lid   (Replaces: 2222796)				$ 153.99
8	W11448696		Gasket, Utility Bin   (Replaces: 2222982)				$ 153.99
9	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 330.30
10	2001230		Washer				$ 12.34
11	2316842S		Handle, Door				$ 224.10
13	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 11.42
14	2005017		Trim-door, Top		Appelez-nous	-
15	2005969		Trim-door, Side		Appelez-nous	-
16	2215994S		Trim-door, Bottom		Appelez-nous	-
17	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
17	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
18	W10323042		Bin, Utility (center)   (Replaces: 2222922)				$ 223.93
19	W11553221		Door, Utility Bin   (Replaces: 2257616)			Immediately	$ 69.64
20	W10323599		Bin, Door (3)   (Replaces: 2222773)				$ 146.61
21	W10323747		Bin, Door Door   (Replaces: 2222770)				$ 145.36
