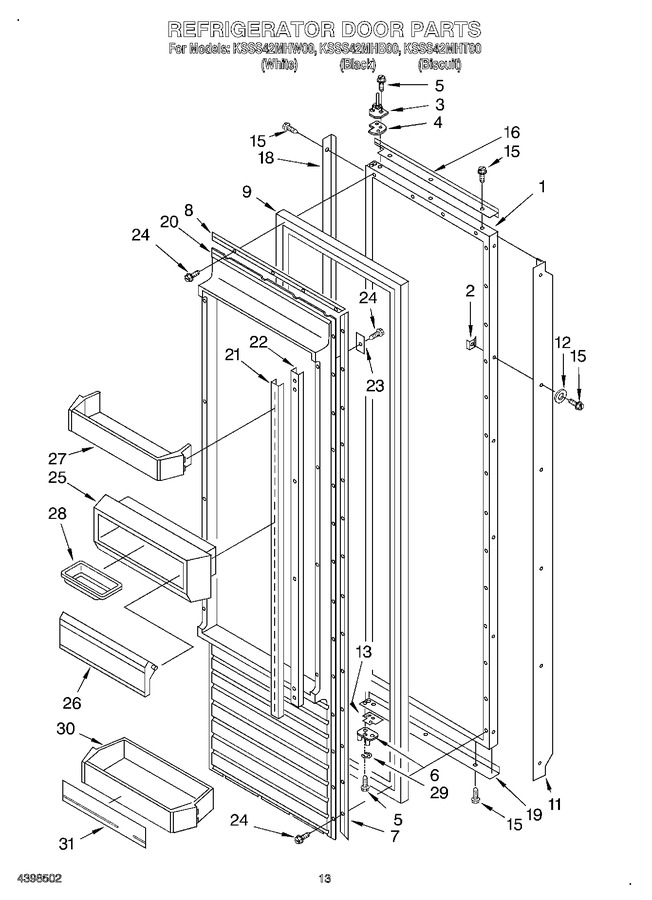

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003871		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
2	WP939101		Screw Anchor (8)   (Replaces: 939101)				$ 7.50
3	2005329		Hinge Assembly, Top		Appelez-nous	-
4	2004520		Spacer-door, Top		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
6	2004523		Hinge Assembly, Bottom				$ 29.76
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112541		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188320A		Door Gasket, Magnetic   (Replaces: 2005532)				$ 296.40
11	2005953		Handle, Door (white)		Appelez-nous	-
11	2005955		Handle, Door (biscuit)		Appelez-nous	-
11	2005956		Handle, Door (black)		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2004549		Door, Spacer Bottom		Appelez-nous	-
15	2001208		Screw (white)		Appelez-nous	-
15	3400877		Screw (biscuit)		Appelez-nous	-
15	3400878		Screw (black)		Appelez-nous	-
16	2005757		Trim (top) (biscuit)		Appelez-nous	-
16	2005014		Trim (top) (white)		Appelez-nous	-
16	2005840		Trim (top) (black)		Appelez-nous	-
18	2005968		Trim (side) (white)		Appelez-nous	-
18	2005970		Trim (side) (biscuit)		Appelez-nous	-
18	2005971		Trim, Side (black)		Appelez-nous	-
19	2003667		Trim (bottom) (white)		Appelez-nous	-
19	2005758		Trim (bottom) (biscuit)		Appelez-nous	-
19	2005881		Trim (bottom) (black)		Appelez-nous	-
20	1113953		Panel, Interior Door		Appelez-nous	-
21	1113951		Ladder, Shelf (2)		Appelez-nous	-
22	1112530		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw   (Replaces: 486194)				$ 14.02
25	1112721		Bin, Utility		Appelez-nous	-
26	2003464		Door, Utility Bin		Appelez-nous	-
27	2003131		Door Shelf (4)		Appelez-nous	-
28	2165792		Tray, Butter		Appelez-nous	-
29	2004881		Retaining Ring, Door-closure		Appelez-nous	-
30	2006423		Shelf, Gallon Door		Appelez-nous	-
31	2006420		Overlay		Appelez-nous	-
