Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1107943 Housing, Dispenser Appelez-nous -
2 2147164 Insulator, Bracket Control Appelez-nous -
3 WP4388152 Water Fitting, Assembly (includes Water Tube)   (Replaces: 2157746) Special Order $ 276.43

4 2152716 Frame, Slides Appelez-nous -
5 2152719 Slide, Cube/crush Switch Appelez-nous -
6 2152724 Slide, Light Switch Appelez-nous -
7 2147172 Heat Shield, Frame Appelez-nous -
8 488361 Screw (2) Appelez-nous -
10 987048 Grommet Appelez-nous -
11 2149097 Heater, Ice Dispenser Appelez-nous -
12 2147167 Ice Door Mechanism Special Order $ 64.67

13 2147168 Door, Ice Special Order $ 33.13

16 WP3400906 Screw   (Replaces: 489000) Special Order $ 7.84

17 1127421 Lever, Ice Dispenser Appelez-nous -
19 987917 Bearing, Clip Appelez-nous -
20 2159196 Lever, Water Dispenser Appelez-nous -
22 983696 Spring, Lever Special Order $ 21.26

23 983697 Bearing, Lever Appelez-nous -
24 WP1120581 Delay Mechanism   (Replaces: 1120581) Special Order $ 213.07

25 2147163 Bracket, Control Appelez-nous -
26 WP2162361 Switch (4)   (Replaces: 2162361) In-Stock Immediately $ 27.34

27 625834 Insulation, Switch Special Order $ 7.99

28 489155 Screw, Appelez-nous -
29 2147131 Lamp Holder Appelez-nous -
30 WP489128 Screw   (Replaces: 488500) Special Order $ 10.88

35 2147166 Wiring Harness, Door Appelez-nous -
36 2147165 Shield, Wiring Appelez-nous -
37 1119035 Guiding, Ice Appelez-nous -
39 489197 Screw Appelez-nous -
40 WP488729 Screw   (Replaces: 487052) In-Stock Immediately $ 7.79

41 WP22002263 Light Bulb   (Replaces: 851389) In-Stock Immediately $ 13.66

42 2002877 Front Cover, Housing (includes No.49) Appelez-nous -
44 2002730 Cover, Dispenser Opening Appelez-nous -
45 2003594 Trim, Front (2) Appelez-nous -
47 983900 Grille, Overflow Special Order $ 27.30

49 2002889 Overlay, Cover Appelez-nous -
53 487944 Washer (2) Appelez-nous -
54 W10759522 Screw (2)   (Replaces: 488568) Special Order $ 7.75

55 482672 Seal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

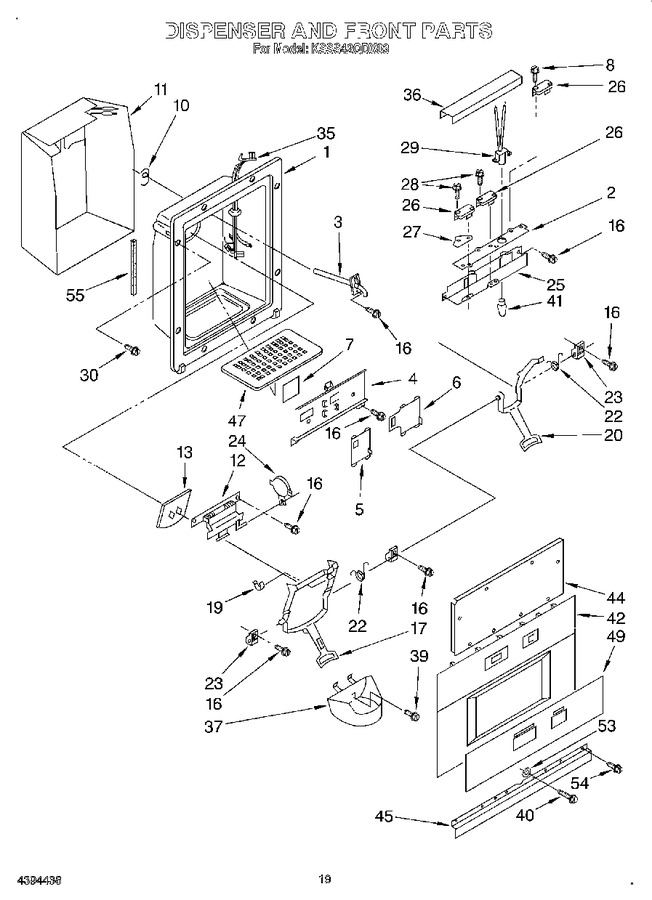

Diagram for KSSS42QDX03
