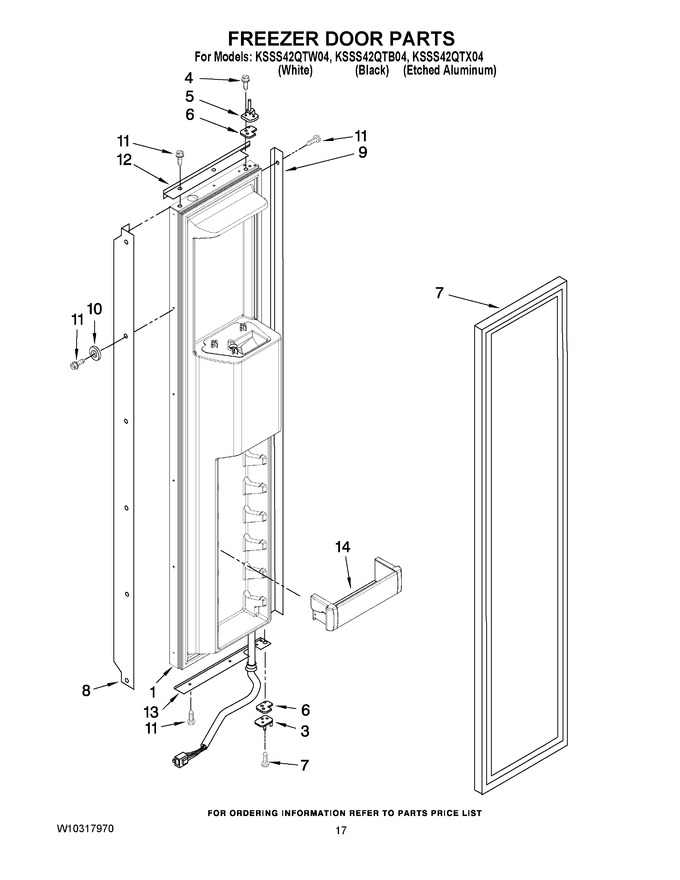

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292436		Freezer Door (includes No.13) (black)		Appelez-nous	-
1	W10292432		Freezer Door (includes No.13) (universal Silver)		Appelez-nous	-
1	W10292437		Freezer Door (includes No.13) (white)		Appelez-nous	-
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
8	2316844W		Handle, Door (white)		Appelez-nous	-
8	2316844S		Handle, Door (stainless Steel)				$ 225.63
8	2316844B		Handle, Door (black)		Appelez-nous	-
9	2005966		Trim-door, Side (black)		Appelez-nous	-
9	2005963		Trim-door, Side (white)		Appelez-nous	-
9	2005964		Trim-door, Side (brushed Aluminum)		Appelez-nous	-
10	2001230		Washer				$ 12.34
11	W10825422		Screw   (Replaces: 8281251)				$ 11.36
12	2005026		Trim-door, Top (brushed Aluminum)		Appelez-nous	-
12	2005886		Trim-door, Top (black)		Appelez-nous	-
12	2005023		Trim-door, Top (white)		Appelez-nous	-
13	2215985B		Trim-door, Bottom (black)		Appelez-nous	-
13	2215985S		Trim-door, Bottom (stainless Steel)		Appelez-nous	-
13	2215985W		Trim-door, Bottom (white)		Appelez-nous	-
14	W10323602		Bin, Door (3)   (Replaces: 2222776)				$ 98.03
