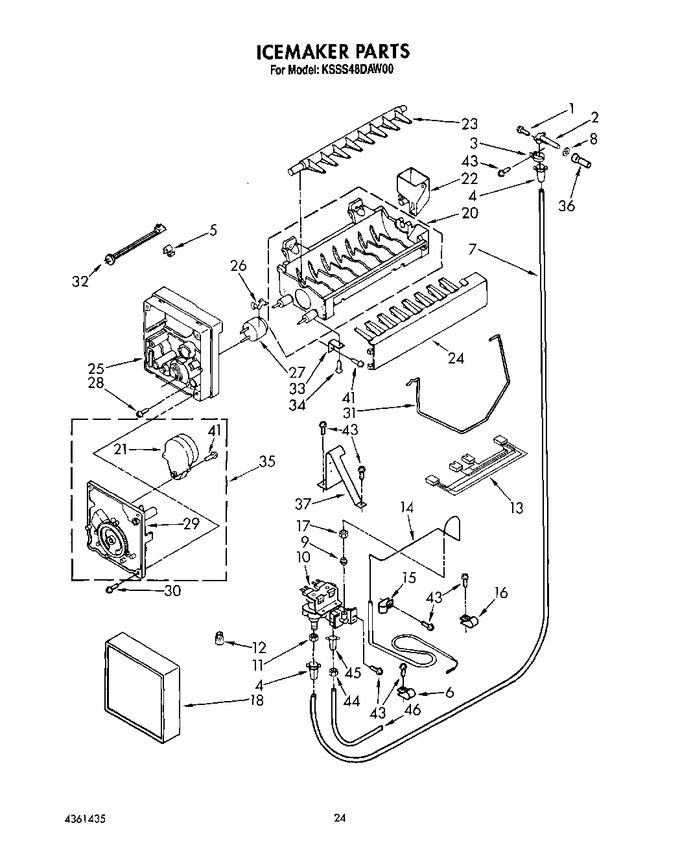

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 2 | 2000829 | Fitting, Water Tube |
|
- | |||||
| 3 | WP488878 | Clamp, Tube (Replaces: 2001087) |
|
$ 12.18 | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 8.23 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 6 | 2000392 | Wire Clip |
|
- | |||||
| 7 | 2001336 | Tube, Water (to Ice Maker) |
|
- | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 9 | WP487627 | Sleeve, Nut (Replaces: 487627) |
|
$ 11.73 | |||||
| 10 | W10853654 | Valve, Solenoid (Replaces: 2155062) |
|
$ 157.68 | |||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 11.51 | |||||
| 12 | 227991 | Connector Wire |
|
- | |||||
| 13 | 2000836 | Water Valve, Harness |
|
- | |||||
| 14 | 8003RP | Copper, Water Line (Replaces: 2001353) |
|
Immediately | $ 43.29 | ||||
| 15 | 489348 | Clamp, Nylon Valve |
|
- | |||||
| 16 | 1113066 | Clamp Tube |
|
- | |||||
| 17 | WP245183 | Nut (Replaces: 487857) |
|
$ 8.84 | |||||
| 18 | 628355 | Cover |
|
- | |||||
| 20 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: 628228) |
|
$ 233.15 | |||||
| 21 | W10190935 | Motor (Replaces: 628258) |
|
Immediately | $ 110.07 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 53.75 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 627788) |
|
$ 90.35 | |||||
| 25 | WP2195914 | Support (Replaces: 627790) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.60 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 114.64 | |||||
| 28 | 8533917 | Screw, 10-32 X 49/64 (Replaces: 489322) |
|
$ 14.04 | |||||
| 29 | 00628357 | Module, Assembly (Replaces: 628357) |
|
Immediately | $ 83.68 | ||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 627913) |
|
Immediately | $ 63.21 | ||||
| 32 | 1113403 | Harness, Wiring |
|
- | |||||
| 33 | WP2256087 | Bracket (Replaces: 627915) |
|
$ 97.65 | |||||
| 34 | 489365 | Screw, 8-32 X 27/64 |
|
- | |||||
| 35 | W10190935 | Module Assembly (includes Items 21, 29, 41) (Replaces: 628366) |
|
Immediately | $ 110.07 | ||||
| 36 | 2001098 | Water Inlet Tube |
|
- | |||||
| 37 | 2000803 | Water Valve Mounting Bracket |
|
- | |||||
| 41 | 489136 | Screw, (2) 3-24 X 3/8 |
|
$ 10.80 | |||||
| 43 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 44 | 1129179 | Compression Nut |
|
- | |||||
| 45 | 1129177 | Insert, Tube |
|
$ 5.27 | |||||
| 46 | 2001152 | Water, Tube (from Water Reservior) |
|
- | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 183.45 | ||||
| 100 | 4210593 | Stainless Steel |
|
- | |||||
| 100 | 4211168 | Front Panel Kit (almond) |
|
- | |||||
| 100 | 4210469 | Front Panel Kit (black) |
|
- | |||||
| 100 | 4210464 | Front Panel Kit (white) |
|
- | |||||
| 100 | 4210546 | Top Grille Trim Kit (7-1/2``) |
|
- | |||||
| 100 | 4210545 | Top Grille Trim Kit (8``) |
|
- | |||||
| 100 | 978849 | Cleaner |
|
$ 15.82 | |||||
| LIT2000868 | Energy Label |
|
- | ||||||
| LIT2000850 | Service & Wiring Sheet |
|
- | ||||||
| LIT2001362 | Use & Care Guide |
|
- | ||||||
| LIT4361435 | Parts List |
|
- | ||||||
| LIT2001094 | Installation Instructions |
|
- | ||||||
| LIT628370 | Modular Icemaker Service Sheet |
|
- |
