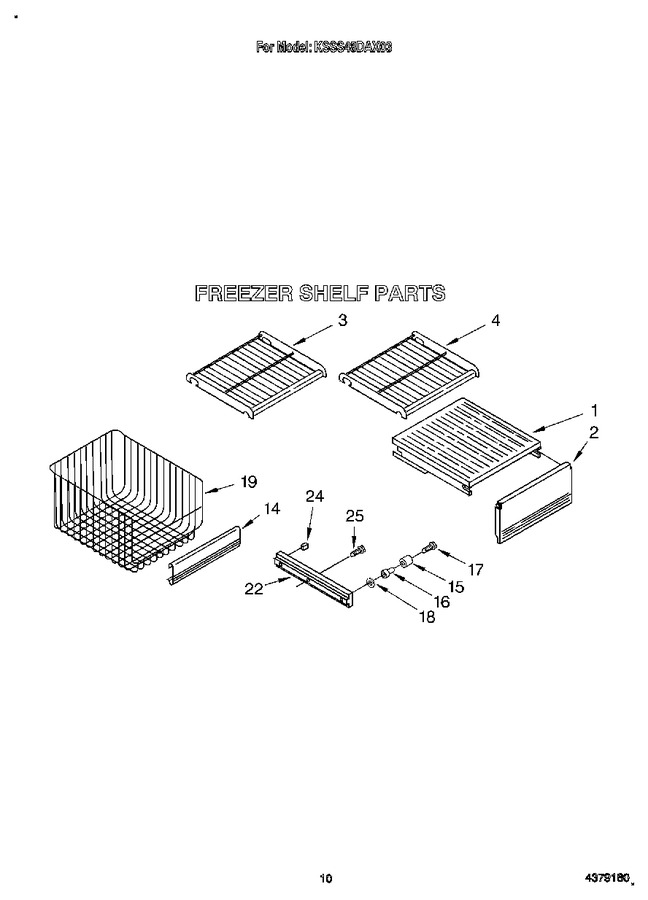

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112367		Solid Shelf		Appelez-nous	-
2	2000529		Front, Ice Compartment		Appelez-nous	-
3	1112052		Shelf, Fixed		Appelez-nous	-
4	1113638		Shelf, Fixes (2) (large)		Appelez-nous	-
14	1113644		Trim, Basket		Appelez-nous	-
15	1113870		Roller		Appelez-nous	-
16	1113871		Eyelet, Roller		Appelez-nous	-
17	WPW10272364		Screw, 10-16 X 3/4   (Replaces: 489211)			Immediately	$ 10.82
18	488307		Washer		Appelez-nous	-
19	2001626		Basket		Appelez-nous	-
22	2000062		Slide, Basket L.s.		Appelez-nous	-
22	2000061		Slide, Basket R.s.		Appelez-nous	-
24	1113169		Stop, Roller				$ 11.28
25	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
