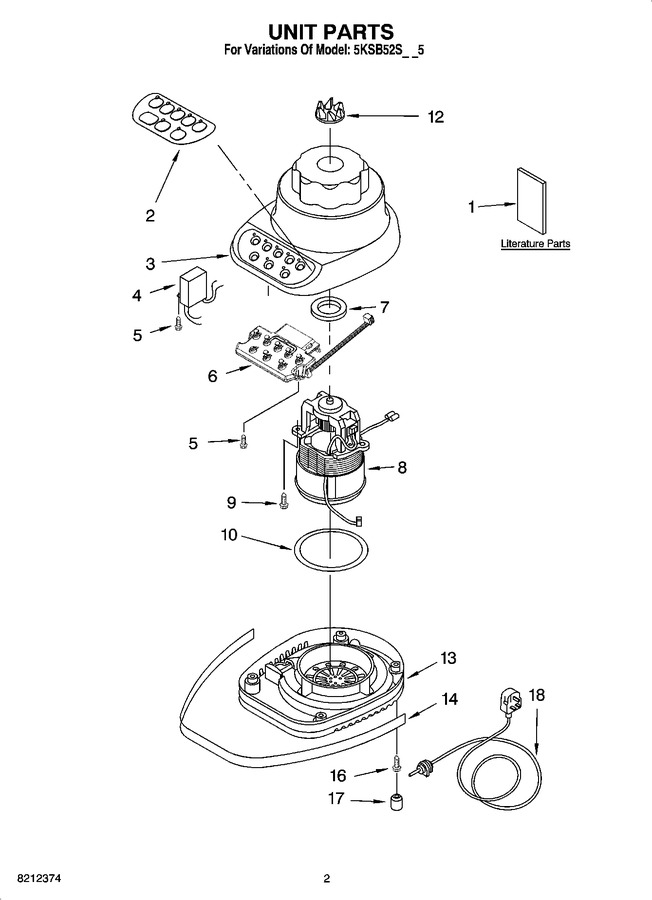

01 - Unit Parts
02 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8212374 | Repair Parts List |
|
- | |||||
| 1 | 9709310 | Use & Care Guide |
|
- | |||||
| 2 | 9704296 | Overlay, Switch |
|
- | |||||
| 3 | 9706995 | Housing, Upper (empire Red) |
|
- | |||||
| 3 | 9706993 | Housing, Upper (onyx Black) |
|
- | |||||
| 3 | 9706989 | Housing, Upper (white) |
|
- | |||||
| 3 | 9706991 | Housing, Upper (cobalt Blue) |
|
- | |||||
| 3 | 9706996 | Housing, Upper (imperial Grey) |
|
- | |||||
| 4 | 9704299 | Emi Filter |
|
- | |||||
| 5 | WPW10068250 | Screw (Replaces: W10068250) |
|
$ 4.27 | |||||
| 6 | 9706613 | Board, Control (230v) |
|
$ 62.00 | |||||
| 7 | 3184398 | Seal, Motor |
|
$ 22.10 | |||||
| 8 | 9706760 | Motor (240v) |
|
- | |||||
| 9 | 3400062 | Screw |
|
- | |||||
| 10 | 9701904 | O-ring |
|
$ 20.20 | |||||
| 12 | WP9704230 | Coupling, Drive (Replaces: 9704230) |
|
Immediately | $ 18.05 | ||||
| 13 | 9706722 | Base (imperial Grey) |
|
$ 41.39 | |||||
| 13 | 9706718 | Base (white) |
|
- | |||||
| 13 | 9706720 | Base (cobalt Blue) |
|
- | |||||
| 13 | 9706724 | Base (empire Red) |
|
- | |||||
| 14 | 9704295 | Band, Trim |
|
- | |||||
| 16 | 3184608 | Screw |
|
- | |||||
| 17 | WP9709707 | Foot, Rubber (Replaces: 115792) |
|
Immediately | $ 4.42 | ||||
| 18 | 9707862 | Power Cord (white) |
|
- | |||||
| 18 | 9707863 | Power Cord (black) |
|
- |
