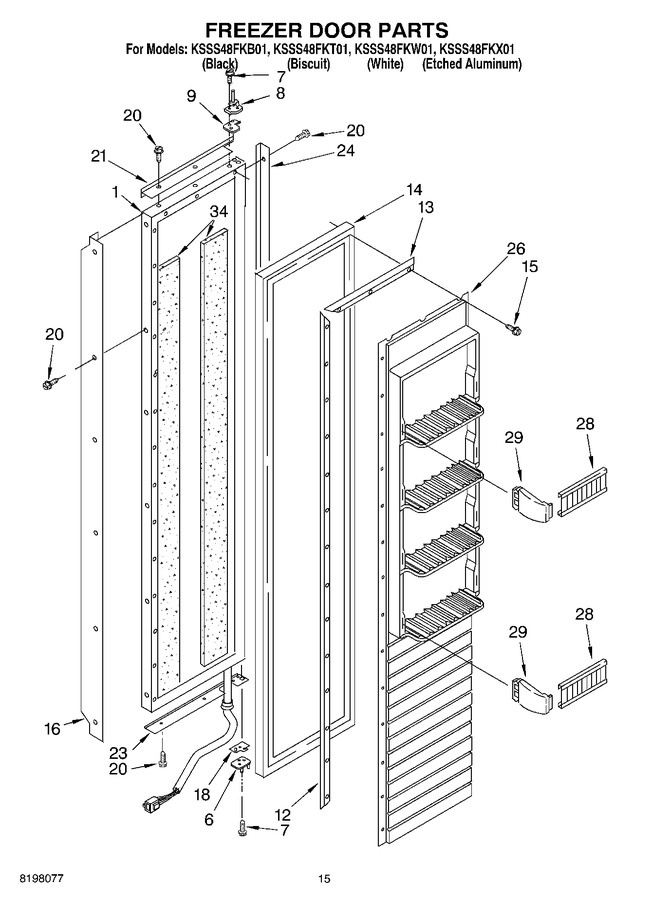

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8201579 | Freezer Door Panel |
|
- | |||||
| 6 | 2220810 | Hinge, Bottom |
|
- | |||||
| 7 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.02 | ||||
| 8 | 2220922 | Hinge, Top |
|
- | |||||
| 9 | 2004520 | Spacer-door, Top |
|
- | |||||
| 12 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 13 | 1112539 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 14 | 2188497 | Door Gasket, Magnetic |
|
- | |||||
| 15 | W11624204 | Screw (34) (Replaces: 486194) |
|
$ 14.02 | |||||
| 16 | 2005943 | Handle, Door (white) |
|
- | |||||
| 16 | 2005942 | Handle, Door (etched Aluminum) |
|
- | |||||
| 16 | 2005945 | Handle, Door (biscuit) |
|
- | |||||
| 16 | 2005946 | Handle, Door (black) |
|
- | |||||
| 18 | 2004549 | Door, Spacer |
|
- | |||||
| 20 | WP8281250 | Screw Stainless Steel (Replaces: 8281250) |
|
$ 10.88 | |||||
| 20 | W10825422 | Screw (white) (Replaces: 8281251) |
|
$ 10.82 | |||||
| 20 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 7.69 | ||||
| 20 | 8281253 | Screw (biscuit) |
|
- | |||||
| 21 | 2005021 | Trim (top) (etched Aluminum) |
|
- | |||||
| 21 | 2005024 | Trim (top) (white) |
|
- | |||||
| 21 | 2005887 | Trim (top) (black) |
|
- | |||||
| 21 | 2005772 | Trim (top) (biscuit) |
|
- | |||||
| 23 | 2209422W | Trim (bottom) (white) |
|
- | |||||
| 23 | 2209422B | Trim (bottom) (black) |
|
- | |||||
| 23 | 2209422 | Trim (bottom) (etched Aluminum) |
|
- | |||||
| 23 | 2209422T | Trim (bottom) (biscuit) |
|
- | |||||
| 24 | 2005966 | Trim (side) (black) |
|
- | |||||
| 24 | 2005962 | Trim (side) (etched Aluminum) |
|
- | |||||
| 24 | 2005963 | Trim (side) (white) |
|
- | |||||
| 24 | 2005965 | Trim (side) (biscuit) |
|
- | |||||
| 26 | 2209032 | Panel, Interior Door |
|
- | |||||
| 28 | 2195934 | Shelf Bin (4) |
|
$ 46.59 | |||||
| 29 | 2208954 | Trim, Endcap (left Side) |
|
$ 5.84 | |||||
| 29 | 2209134 | Trim, End Cap (right Side) |
|
$ 10.05 | |||||
| 34 | 2005610 | Seal |
|
- |
