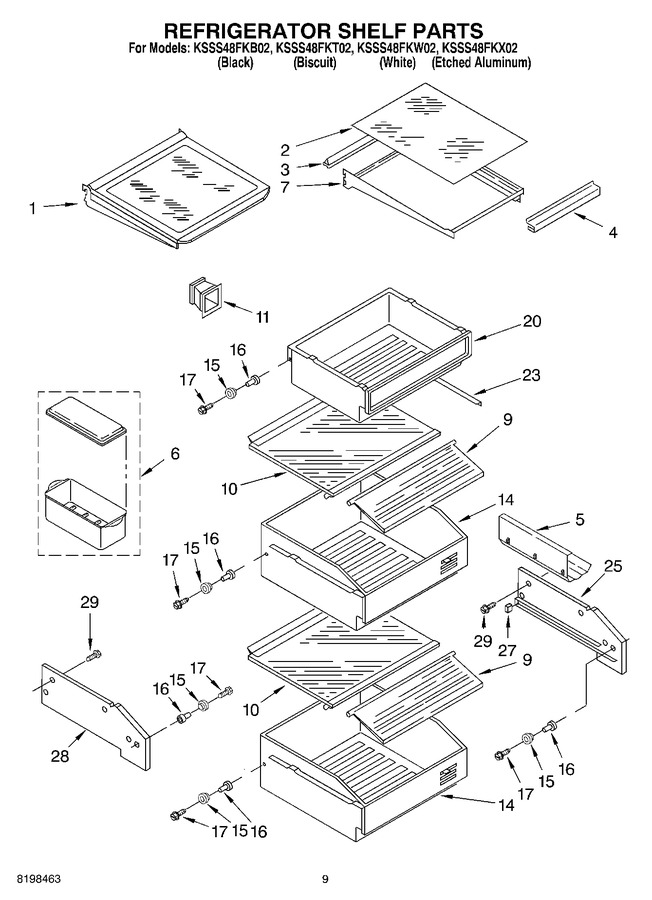

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2174404		Frame, Shelf		Appelez-nous	-
2	2003377		Glass, Shelf		Appelez-nous	-
3	1112006		Reflector, Shelf		Appelez-nous	-
4	1113792		Gasket, Glass (2)		Appelez-nous	-
5	W10777924		Rack, Wine   (Replaces: 2179404)				$ 23.60
6	WP2221071A		Egg Bin   (Replaces: 2221071)				$ 24.56
7	2006525		Frame, Assembly Meat Pan		Appelez-nous	-
9	WP1112247		Cover, Crisper   (Replaces: 1112247)				$ 98.99
10	2003380		Glass, Crisper (includes 9)		Appelez-nous	-
11	2000742		Meat Pan, Connector		Appelez-nous	-
14	2220897		Crisper Pan (2)		Appelez-nous	-
15	2188212		Roller		Appelez-nous	-
16	2174478		Eyelet, Roller				$ 5.70
17	WPW10272364		Screw   (Replaces: 2003478)			Immediately	$ 10.82
20	2220903		Meat Pan				$ 79.13
23	2002181		Retainer, Glass		Appelez-nous	-
25	2006515		Crisper Spacer, Right Side (2)				$ 71.96
27	1113169		Stop, Roller				$ 11.28
28	2006516		Crisper Spacer, Left Side (2)				$ 36.51
29	W11624204		Screw   (Replaces: 486194)				$ 14.02
