New Model Search:

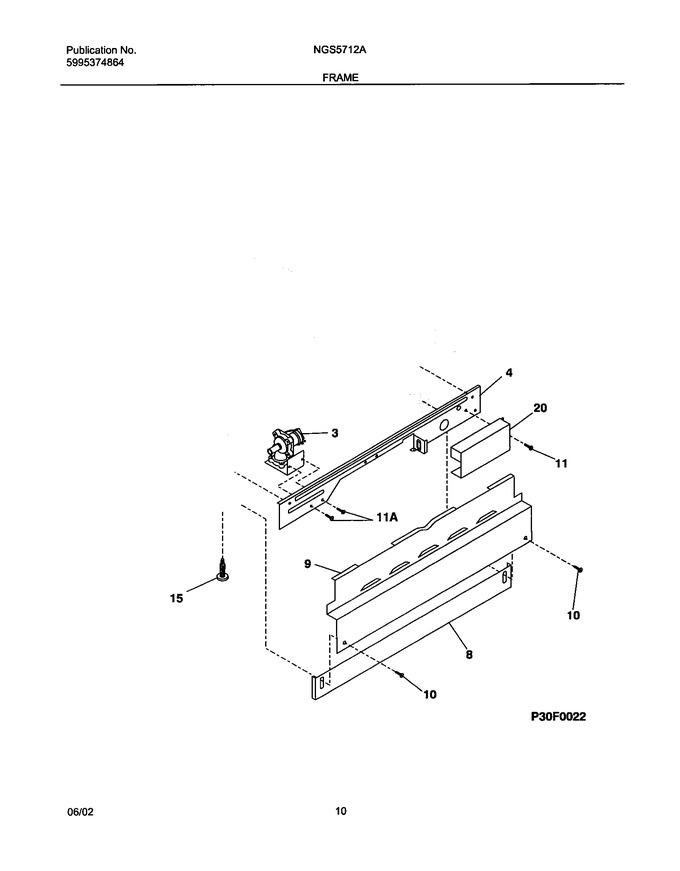

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 154637401 | Valve,water (Replaces: 154373301) |
|
Immediately | $ 23.73 | ||||
| 4 | 5304508587 | Brace,front Frame (Replaces: 154208701) |
|
$ 32.13 | |||||
| 8 | 154745501 | Toeplate,adjustable ,white (Replaces: 154322901) |
|
Immediately | $ 23.63 | ||||
| 9 | 5304501482 | Kickplate Assy,white ,w/ Foam (Replaces: 154397201) |
|
$ 56.75 | |||||
| 10 | 154419403 | Screw,no.8a X .375`` ,black (Replaces: 5300808658) |
|
$ 14.56 | |||||
| 11 | 808326801 | Screw,no.8-18 X .375 (Replaces: 154409401) |
|
$ 3.15 | |||||
| 15 | 154419301 | Screw,leveling |
|
$ 17.17 | |||||
| 20 | 154209601 | Cover-junction Box |
|
$ 39.80 | |||||
| 11A | 154200601 | Screw,no.10-16 X 3/8 |
|
$ 7.98 | |||||
| NI | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 10.24 | |||||
| NI | 154041001 | Screw,plask No.1 ,10-10 X 9/16 |
|
- | |||||
| NI | 154200602 | Screw,10-16 X 3/8 ,hex |
|
$ 10.21 |
