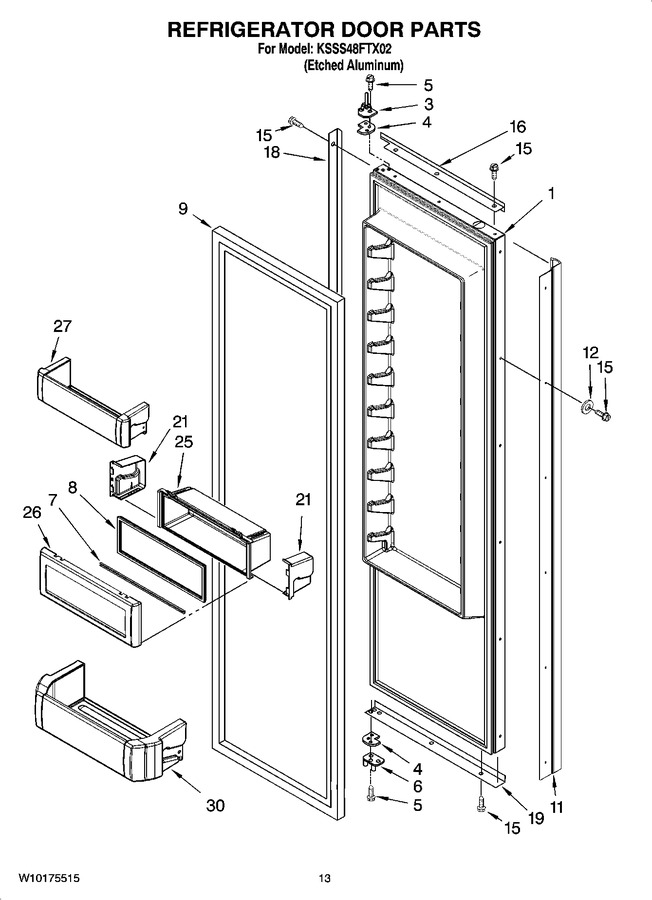

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252331		Refrigerator Door (includes 9)				$ 1,681.37
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 312.50
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	W11348580		Rail, Lid   (Replaces: 2222797)			Immediately	$ 162.13
8	W11348580		Gasket, Utility Bin   (Replaces: 2222983)			Immediately	$ 162.13
9	WP2266903		Door Gasket, Magnetic   (Replaces: 2222812)			Immediately	$ 340.02
11	2316842S		Handle, Door				$ 224.10
12	2001230		Washer				$ 12.34
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 11.42
16	2005018		Trim-door, Top		Appelez-nous	-
18	2005969		Trim-door, Side		Appelez-nous	-
19	2215995S		Trim-door, Bottom		Appelez-nous	-
21	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
21	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
25	W11348580		Bin, Utility Center   (Replaces: 2222923)			Immediately	$ 162.13
26	W11348580		Door, Utility Bin   (Replaces: 2257617)			Immediately	$ 162.13
27	W11752086		Bin, Door (3)   (Replaces: 2222774)				$ 68.19
30	W10323748		Bin, Door Door   (Replaces: 2222771)				$ 121.78

    View Diagram in Separate Window       Print Part List
