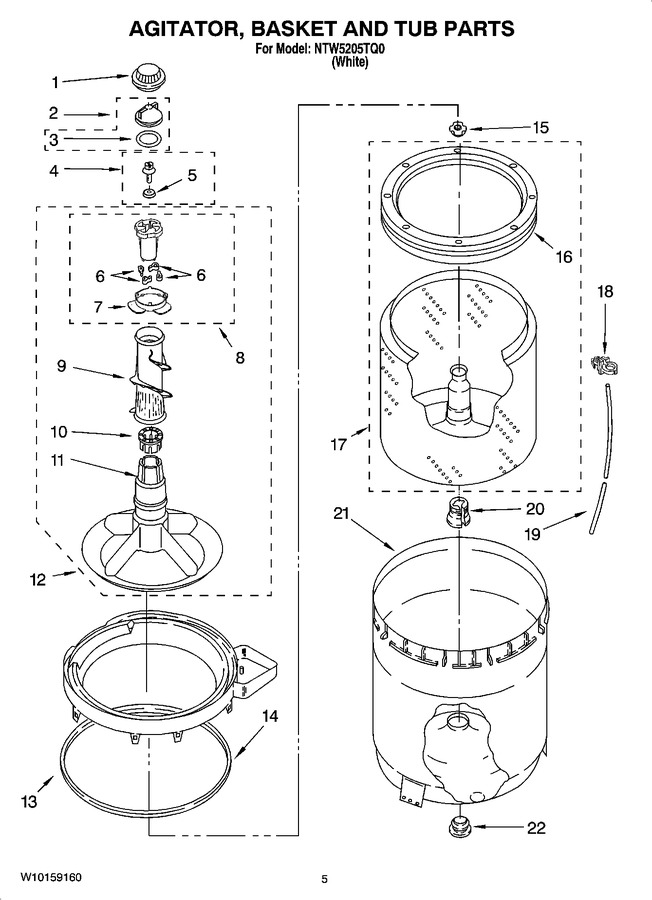

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 13.02 | ||||
| 3 | WPW10072840 | Seal, Inner Cap (Replaces: 3348855) |
|
Immediately | $ 8.72 | ||||
| 4 | WP358237 | Screw & Washer (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 5 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 6 | 80040 | Dog, Agitator (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 7 | WP3363661 | Bearing-driven Cam (Replaces: 3363661) |
|
$ 8.23 | |||||
| 8 | 285811 | Cam, Driven (Replaces: 3363663) |
|
Immediately | $ 32.59 | ||||
| 9 | WP3348752 | Clothes Mover (Replaces: 3348752) |
|
$ 257.47 | |||||
| 10 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 4.42 | ||||
| 11 | W10110786 | Agitator |
|
- | |||||
| 12 | 285565 | Agitator (complete) (Replaces: W10110785) |
|
Immediately | $ 259.89 | ||||
| 13 | W10093698 | Tub Ring |
|
$ 91.85 | |||||
| 14 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 29.66 | ||||
| 15 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 16 | WP387240 | Balance Ring (Replaces: 8519788) |
|
Immediately | $ 191.15 | ||||
| 17 | W10093703 | Basket |
|
- | |||||
| 18 | 2219077 | Clip, Pressure Switch Hose |
|
$ 64.24 | |||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 20 | WP389140 | Block, Basket (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 21 | 63849 | Tub |
|
$ 306.29 | |||||
| 22 | W10814296 | Gasket, Centerpost (Replaces: 383727) |
|
Immediately | $ 9.98 |
