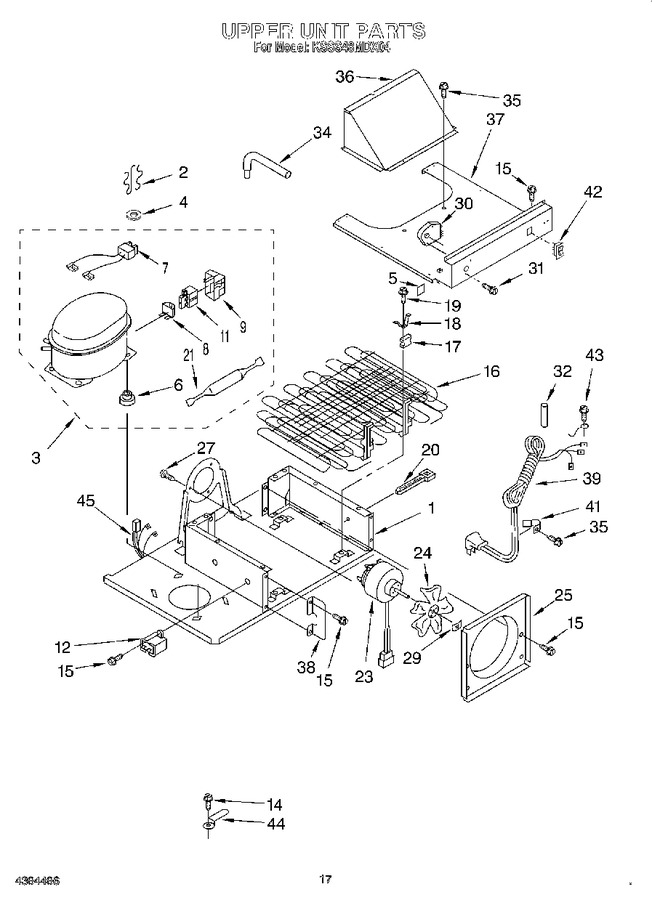

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003398		Assembly, Unit Base		Appelez-nous	-
2	2163787		Clip, Compressor Mounting (4)				$ 7.83
3	876765		Tube Kit			Immediately	$ 86.33
3	W10309995		Compressor (includes Items 7, 8, 9, 11, 12 & 21) (also Order)   (Replaces: 2183420)				$ 670.98
4	680975		Washer		Appelez-nous	-
5	2003389		Bushing, Foam		Appelez-nous	-
6	WP2163786		Grommet, Mounting   (Replaces: 2163786)				$ 7.96
7	WP2172890		Wire Assembly   (Replaces: 1127675)				$ 8.10
8	2176858		Overload (includes Relay)		Appelez-nous	-
9	WP2162358		Terminal Cover   (Replaces: 2162358)				$ 90.75
11	N/A		Relay (see Overload)		Appelez-nous	-
12	2169137		Capacitor		Appelez-nous	-
14	486899		Screw		Appelez-nous	-
15	WP965173		Screw   (Replaces: 487869)			Immediately	$ 10.72
16	2003392		Condenser		Appelez-nous	-
17	943447		Grommet (4)		Appelez-nous	-
18	1113019		Clamp (4)		Appelez-nous	-
19	487522		Screw		Appelez-nous	-
20	851095		Wire Tie (2)		Appelez-nous	-
21	WPW10143759		Drier   (Replaces: 2164492)			Immediately	$ 30.78
23	2169135		Motor, Fan				$ 153.90
24	1108179		Blade, Fan				$ 49.54
25	2003169		Orifice, Fan		Appelez-nous	-
27	681390		Screw (3)   (Replaces: 489099)				$ 13.06
29	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
30	WP2183400		Defrost Timer   (Replaces: 2162044)			Immediately	$ 86.97
31	WP3388228		Screw   (Replaces: 488911)				$ 6.95
32	2000645		Sleeve, Condenser		Appelez-nous	-
34	2003011		Process, Tube		Appelez-nous	-
35	W11624204		Screw   (Replaces: 486194)				$ 14.02
36	2003174		Cover, Fan		Appelez-nous	-
37	2003355		Cover, Condenser		Appelez-nous	-
38	2003263		Air Vane		Appelez-nous	-
39	2003381		Service Cord		Appelez-nous	-
41	1113162		Clamp, Cord (2)		Appelez-nous	-
42	WP2266802		Switch, Power Disconnect   (Replaces: 1113229)				$ 103.89
43	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
44	653035		Clip, Cord Plug		Appelez-nous	-
45	876764		Valve, Access(3/16``)			Immediately	$ 91.35
45	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
45	978026		Valve, Access (5/16``)			Immediately	$ 128.09
45	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
45	978028		Valve, Access (1/2)		Appelez-nous	-
45	978029		Valve Access (5/8``)				$ 93.85
45	978030		Valve, Access (3/4``)				$ 130.71
45	2003356		Wiring Harness, Unit		Appelez-nous	-
