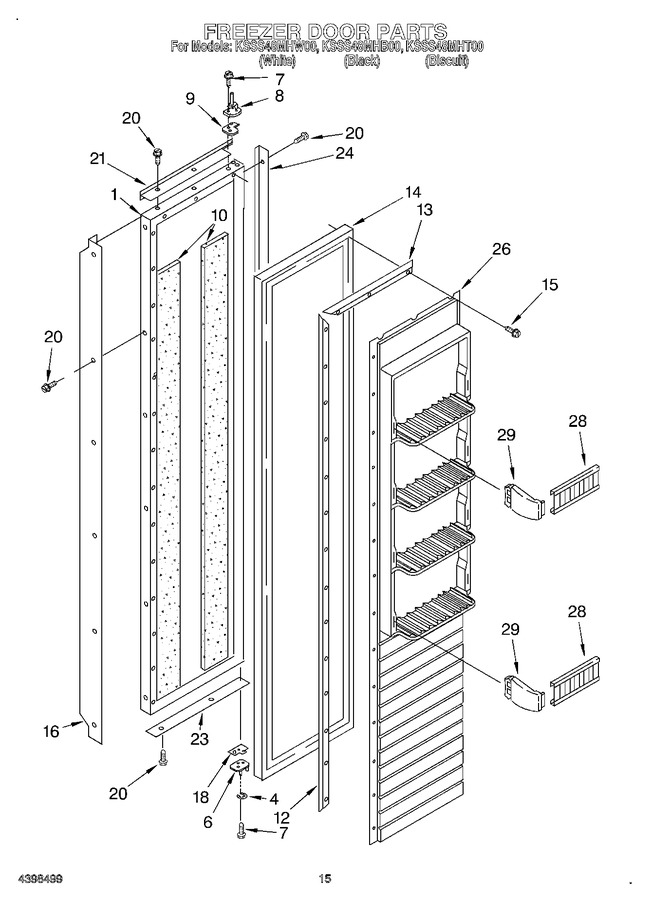

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003878		Freezer Door Panel (includes Insulation)		Appelez-nous	-
4	2004881		Retaining Ring, Door-closure		Appelez-nous	-
6	2004524		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2005329		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
10	2005610		Seal		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188319A		Door Gasket, Magnetic   (Replaces: 2005531)			Immediately	$ 332.23
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.72
16	2005943		Handle, Door (white)		Appelez-nous	-
16	2005942		Handle, Door (black)		Appelez-nous	-
16	2005946		Handle, Door (biscuit)		Appelez-nous	-
18	2004549		Door, Spacer		Appelez-nous	-
20	2001208		Screw (white)		Appelez-nous	-
20	3400878		Screw (black)		Appelez-nous	-
20	3400877		Screw (biscuit)		Appelez-nous	-
21	2005887		Trim (top) (black)		Appelez-nous	-
21	2005772		Trim (top) (biscuit)		Appelez-nous	-
21	2005024		Trim (top) (white)		Appelez-nous	-
23	2005773		Trim (bottom) (biscuit)		Appelez-nous	-
23	2005890		Trim (bottom) (black)		Appelez-nous	-
23	2004671		Trim (bottom) (white)		Appelez-nous	-
24	2005965		Trim (side) (biscuit)		Appelez-nous	-
24	2005963		Trim (side) (white)		Appelez-nous	-
24	2005966		Trim (side) (black)		Appelez-nous	-
26	2209032		Panel, Interior Door		Appelez-nous	-
28	2195934		Trim, Door Shelf				$ 46.59
29	2208954		End Cap				$ 5.84
