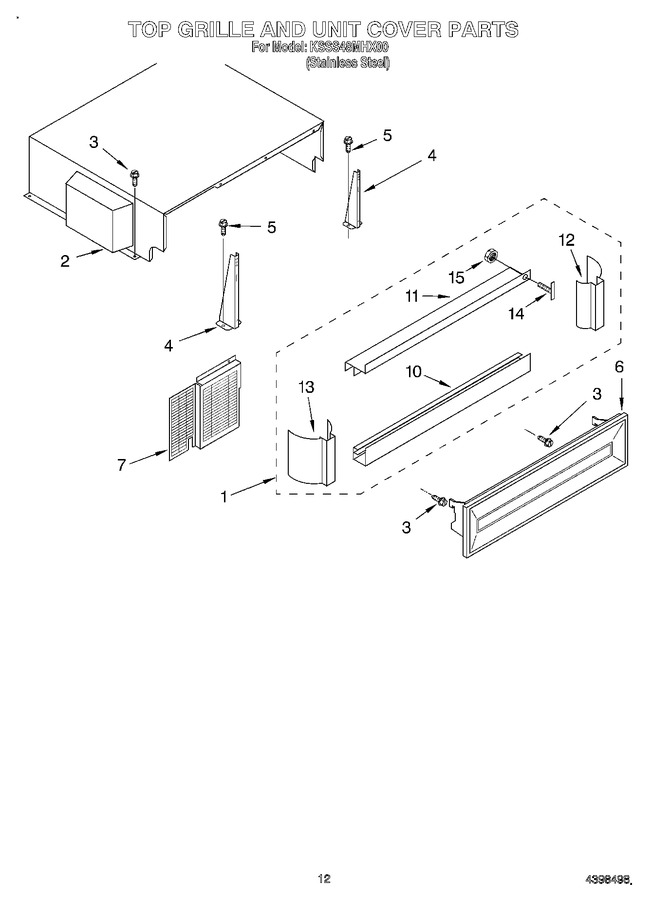

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003715		Top Grille Assembly		Appelez-nous	-
2	2005549		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2002484		Grille, Bracket		Appelez-nous	-
5	WP8204624		Screw   (Replaces: 2001415)				$ 16.65
6	2003724		Decortive Panel Assembly		Appelez-nous	-
7	2005534		Guard, Compressor Wiring		Appelez-nous	-
10	2003613		Trim, Grille Bottom		Appelez-nous	-
11	2003619		Trim, Grille Top		Appelez-nous	-
12	2003599		Trim, Grille Right Side		Appelez-nous	-
13	2003605		Trim, Grille Left Side		Appelez-nous	-
14	2003347		Tee Bolt				$ 14.28
15	WP488130		Lock Nut   (Replaces: 1161548)				$ 6.97

    View Diagram in Separate Window       Print Part List
