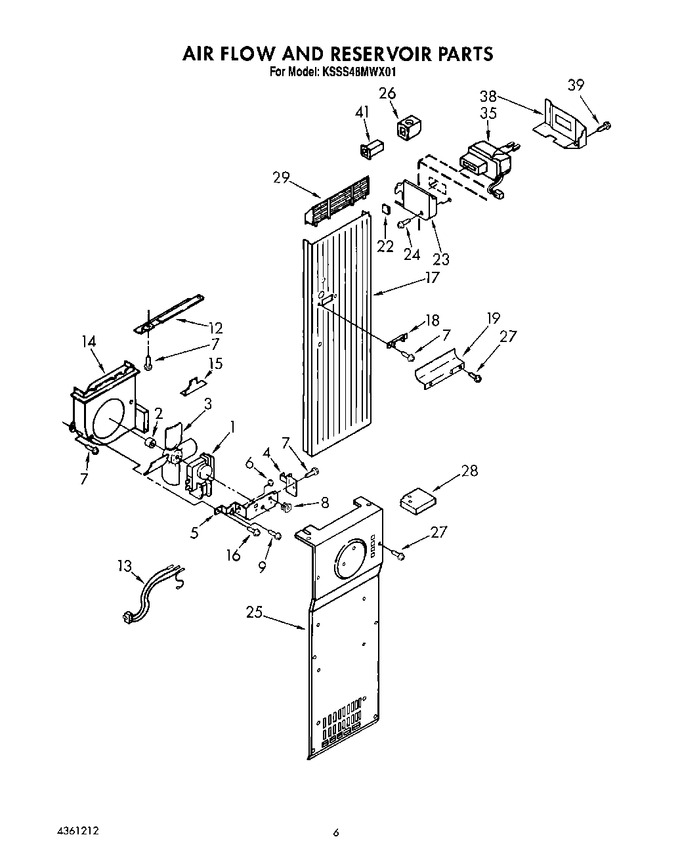

05 - Air Flow And Reservoir


06 - Top Grille And Unit Cover


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Refrigerator Door


10 - Refrigerator Control Panel


11 - Freezer Door


12 - Freezer Control Panel


13 - Upper Unit, Lit/optional


14 - Lower Unit And Tube


15 - Icemaker


16 - Refrigerator Liner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	SM999		Fan, Motor   (Replaces: 945523)			Immediately	$ 30.26
2	992953		Ring, Compression		Appelez-nous	-
3	992920		Blade, Fan				$ 39.91
4	548263		Bracket (double)		Appelez-nous	-
5	938224		Bracket (single)		Appelez-nous	-
6	548268		Grommet		Appelez-nous	-
7	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
8	538449		Grommet, Screw		Appelez-nous	-
9	WP489128		Screw, Ground   (Replaces: 488500)				$ 11.40
12	1112707		Channel, Wiring		Appelez-nous	-
13	2000618		Wiring Harness, Fan Motor		Appelez-nous	-
14	1111212		Scroll, Fan (also Order Item 15)		Appelez-nous	-
15	1112976		Shield, Electric		Appelez-nous	-
16	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
17	100005847		Assembly, Air Duct   (Replaces: 2000060)				$ 21.38
18	2000048		Air Deflector, Icemaker		Appelez-nous	-
19	1112529		Baffle, Evap. Cover		Appelez-nous	-
22	1112869		Gasket, Air Baffle		Appelez-nous	-
23	1113942		Cover, Air Outlet		Appelez-nous	-
24	488748		Screw, 8-32 X 1-1/2		Appelez-nous	-
25	2000487		Cover, Evaporator		Appelez-nous	-
26	1112565		Connector, Meat Pan Duct		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 487539)			Immediately	$ 8.28
28	1112840		Baffle, Evaporator		Appelez-nous	-
29	1112853		Diffuser, Air Duct		Appelez-nous	-
35	1113590		Assembly, Air Baffle		Appelez-nous	-
38	1113940		Cover, Air Diffuser		Appelez-nous	-
39	WP489174		Screw, 8 X 2   (Replaces: 489174)				$ 7.30
41	1112265		Tube, Meat Pan		Appelez-nous	-
