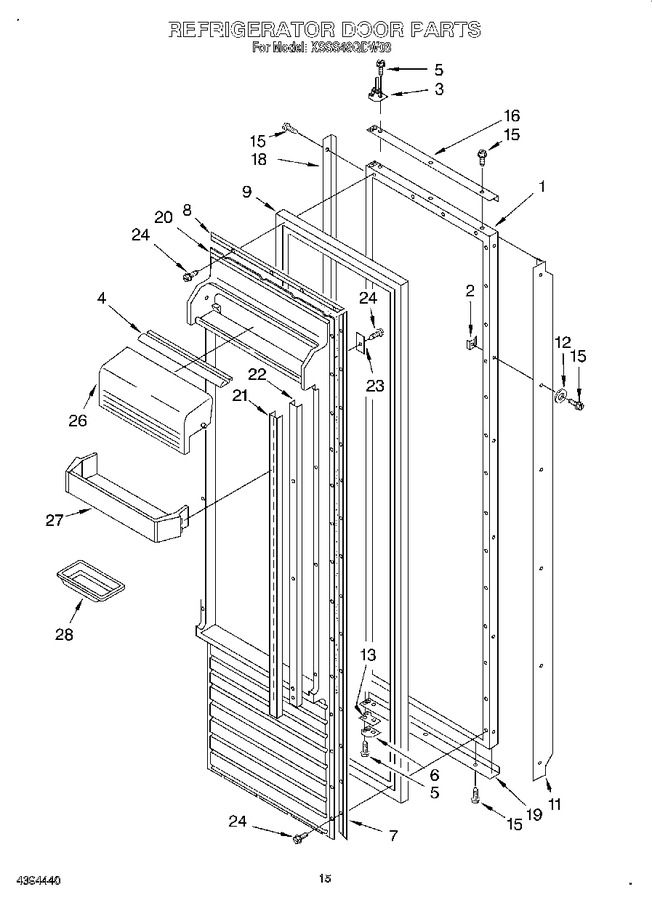

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003872		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
2	WP939101		Screw Anchor (8)   (Replaces: 939101)				$ 7.50
3	2001983		Hinge Assembly, Top		Appelez-nous	-
4	1113955		Gasket Utility Door		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
6	2003986		Hinge Assembly, Bottom		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112542		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188321A		Door Gasket, Magnetic   (Replaces: 2001049)				$ 340.46
11	2003680		Handle, Door		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2003982		Door, Spacer Bottom		Appelez-nous	-
15	2001208		Screw		Appelez-nous	-
16	2003656		Trim (top)		Appelez-nous	-
18	2003676		Trim (side)		Appelez-nous	-
19	2003668		Trim (bottom)		Appelez-nous	-
20	1113950		Panel, Interior Door		Appelez-nous	-
21	1113949		Ladder, Shelf (2)		Appelez-nous	-
22	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (6)		Appelez-nous	-
24	W11624204		Screw   (Replaces: 486194)				$ 14.02
26	2003465		Door, Utility Bin		Appelez-nous	-
27	2003132		Door Shelf (4)				$ 13.02
28	1125936		Butter, Tray		Appelez-nous	-
