SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Motor And Ice Container


11 - Refrigerator Door


12 - Freezer Door


13 - Dispenser And Front


14 - Upper Unit


15 - Lower Unit And Tube


16 - Airflow And Reservoir


17 - Icemaker, Lit/optional

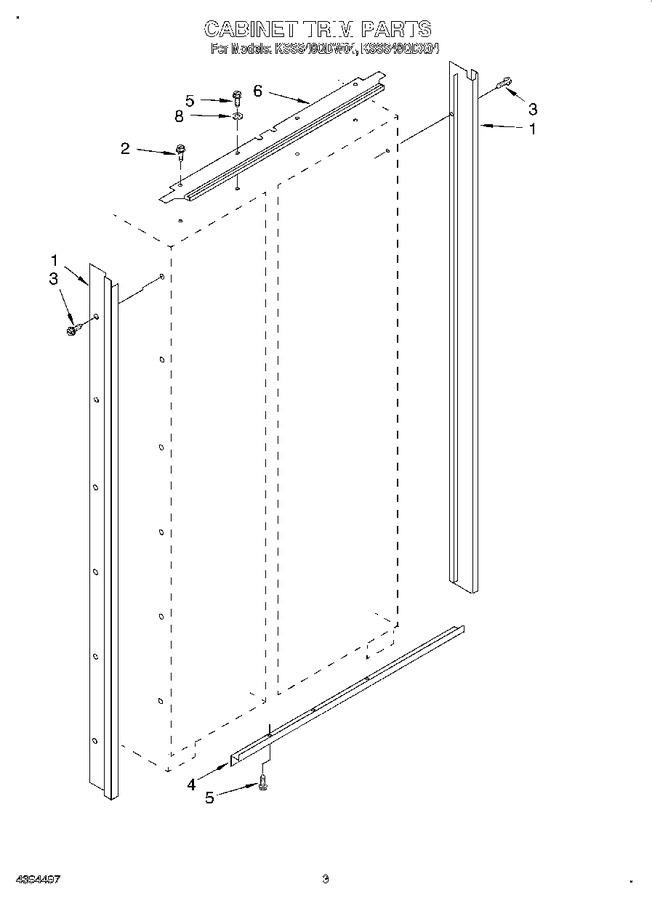

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003644		Cabinet, Trim (2) (white)		Appelez-nous	-
1	2003643		Cabinet, Trim (2) (stainless Steel)		Appelez-nous	-
2	2003857		Screw		Appelez-nous	-
3	2001297		Screw		Appelez-nous	-
4	2003592		Cabinet, Trim (bottom)		Appelez-nous	-
5	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
6	2003647		Cabinet, Trim Top		Appelez-nous	-
8	487944		Washer (2)		Appelez-nous	-
