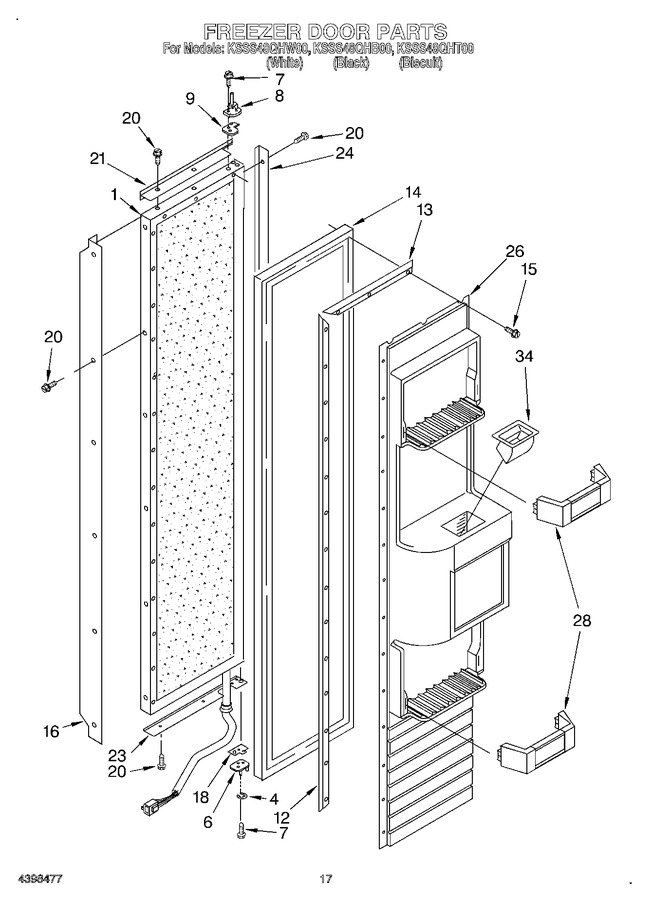

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2202548W | Freezer Door Panel (includes Insulation) (white) |
|
- | |||||
| 1 | 2202548B | Freezer Door Panel (includes Insulation) (black) |
|
- | |||||
| 1 | 2202548T | Freezer Door Panel (includes Insulation) (biscuit) |
|
- | |||||
| 4 | 2004881 | Retaining Ring, Door-closure |
|
- | |||||
| 6 | 2004524 | Hinge, Bottom |
|
- | |||||
| 7 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.02 | ||||
| 8 | 2005329 | Hinge, Top |
|
- | |||||
| 9 | 2004520 | Spacer-door, Top |
|
- | |||||
| 12 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 13 | 1112539 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 14 | 2188319A | Door Gasket, Magnetic (Replaces: 2005531) |
|
Immediately | $ 316.41 | ||||
| 15 | W11624204 | Screw (34) (Replaces: 486194) |
|
$ 14.02 | |||||
| 16 | 2005942 | Handle, Door (black) |
|
- | |||||
| 16 | 2005943 | Handle, Door (white) |
|
- | |||||
| 16 | 2005945 | Handle, Door (biscuit) |
|
- | |||||
| 18 | 2004549 | Door, Spacer |
|
- | |||||
| 20 | WP488729 | Screw (stainless Steel) (Replaces: 487052) |
|
Immediately | $ 7.79 | ||||
| 20 | 2001208 | Screw (white) |
|
- | |||||
| 21 | 2005772 | Trim (top) (biscuit) |
|
- | |||||
| 21 | 2005024 | Trim (top) (white) |
|
- | |||||
| 21 | 2005887 | Trim (top) (black) |
|
- | |||||
| 23 | 2004671 | Trim (bottom) (white) |
|
- | |||||
| 23 | 2005890 | Trim (bottom) (black) |
|
- | |||||
| 23 | 2005773 | Trim (bottom) (biscuit) |
|
- | |||||
| 24 | 2005963 | Trim (side) (white) |
|
- | |||||
| 24 | 2005966 | Trim (side) (black) |
|
- | |||||
| 24 | 2005965 | Trim (side) (biscuit) |
|
- | |||||
| 26 | 2002840 | Panel, Interior Door |
|
- | |||||
| 28 | 2003129 | Shelf Bin (2) |
|
$ 57.57 | |||||
| 33 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.50 | |||||
| 34 | 2208909 | Ice Chute |
|
- |
