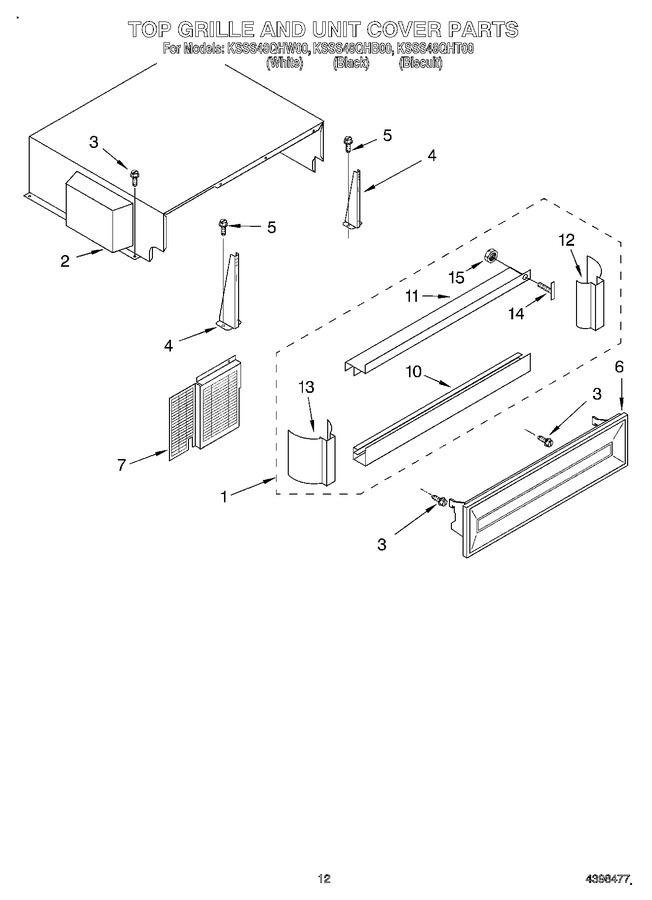

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003718		Top Grille Assembly (white)		Appelez-nous	-
1	2005903		Top Grille Assembly (black)		Appelez-nous	-
1	2006397		Top Grille Assembly (biscuit)		Appelez-nous	-
2	2005549		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2002484		Grille, Bracket		Appelez-nous	-
5	WP8204624		Screw   (Replaces: 2001415)				$ 17.48
6	2006400		Decortive Panel Assembly (biscuit)		Appelez-nous	-
6	2005906		Decortive Panel Assembly (black)		Appelez-nous	-
6	2003727		Decortive Panel Assembly (white)		Appelez-nous	-
7	2005534		Guard, Compressor Wiring		Appelez-nous	-
10	2005832		Trim, Grille Bottom (black)		Appelez-nous	-
10	2003616		Trim, Grille Bottom (white)		Appelez-nous	-
10	2005764		Trim, Grille Bottom (biscuit)		Appelez-nous	-
11	2003622		Trim, Grille Top (white)		Appelez-nous	-
11	2005765		Trim, Grille Top (biscuit)		Appelez-nous	-
11	2005829		Trim, Grille Top (black)		Appelez-nous	-
12	2005732		Trim, Grille Right Side (biscuit)		Appelez-nous	-
12	2003602		Trim, Grille Right Side (white)		Appelez-nous	-
12	2005821		Trim, Grille Right Side (black)		Appelez-nous	-
13	2005733		Trim, Grille Left Side (biscuit)		Appelez-nous	-
13	2005824		Trim, Grille Left Side (black)		Appelez-nous	-
13	2003608		Trim, Grille Left Side (white)		Appelez-nous	-
14	2003347		Tee Bolt				$ 14.99
15	WP488130		Lock Nut   (Replaces: 1161548)				$ 7.32
