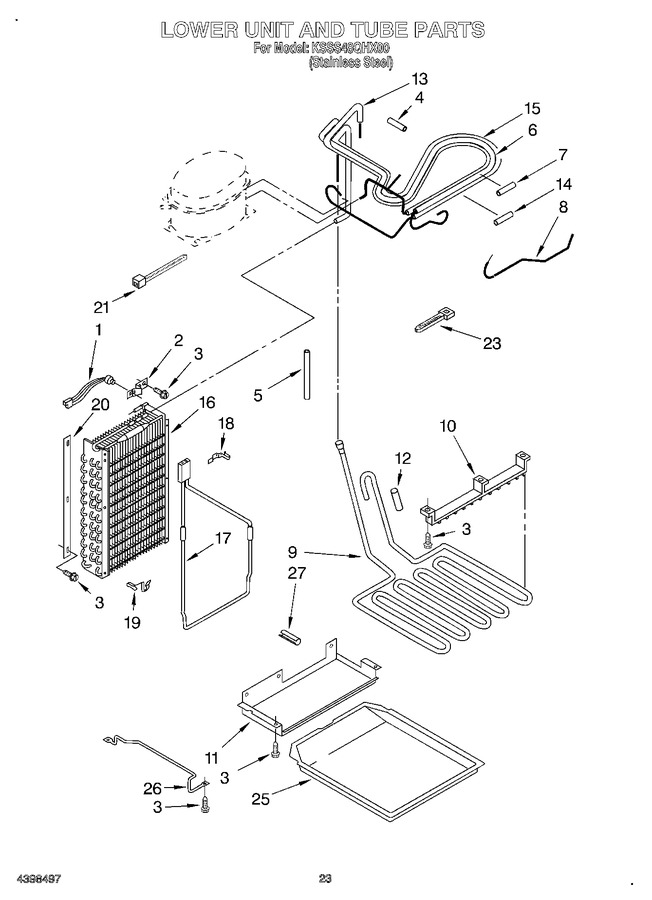

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4387499		Defrost Bi-metal   (Replaces: 2000528)				$ 120.86
2	1113043		Clamp, Bi-metal		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2003271		Sleeve		Appelez-nous	-
5	2002171		Sleeve				$ 36.19
6	2002999		Condenser Inlet Tube		Appelez-nous	-
7	2003484		Sleeve		Appelez-nous	-
8	2003015		Tube, Connect (drier)		Appelez-nous	-
9	WP2004545		Heater, Drain Pan   (Replaces: 2004545)				$ 366.60
10	1113062		Hanger, Heater		Appelez-nous	-
11	2005908		Shield, Drain Pan		Appelez-nous	-
12	2002448		Sleeve		Appelez-nous	-
13	2002995		Tube, Discharge		Appelez-nous	-
14	2003272		Sleeve		Appelez-nous	-
15	2003003		Heat Exchanger				$ 133.14
16	4388575		Evaporator   (Replaces: 2002966)				$ 385.18
17	WP2006751		Heater, Defrost   (Replaces: 2006751)				$ 147.81
18	1113048		Clamp, Heater (2)		Appelez-nous	-
19	1108431		Clamp, Heater (2)		Appelez-nous	-
20	1112844		Gasket, Evaporator		Appelez-nous	-
21	WPW10339879		Wire Tie   (Replaces: 857547)				$ 7.90
23	851095		Strap		Appelez-nous	-
25	WP2001264		Drain Pan   (Replaces: 2001264)				$ 263.98
26	1113206		Bracket, Drain Pan (left)		Appelez-nous	-
26	1113207		Bracket, Drain Pan (right)		Appelez-nous	-
27	WP2158826		Dampener   (Replaces: 513942)				$ 1.73

    View Diagram in Separate Window       Print Part List
