01 - Top And Cabinet Parts

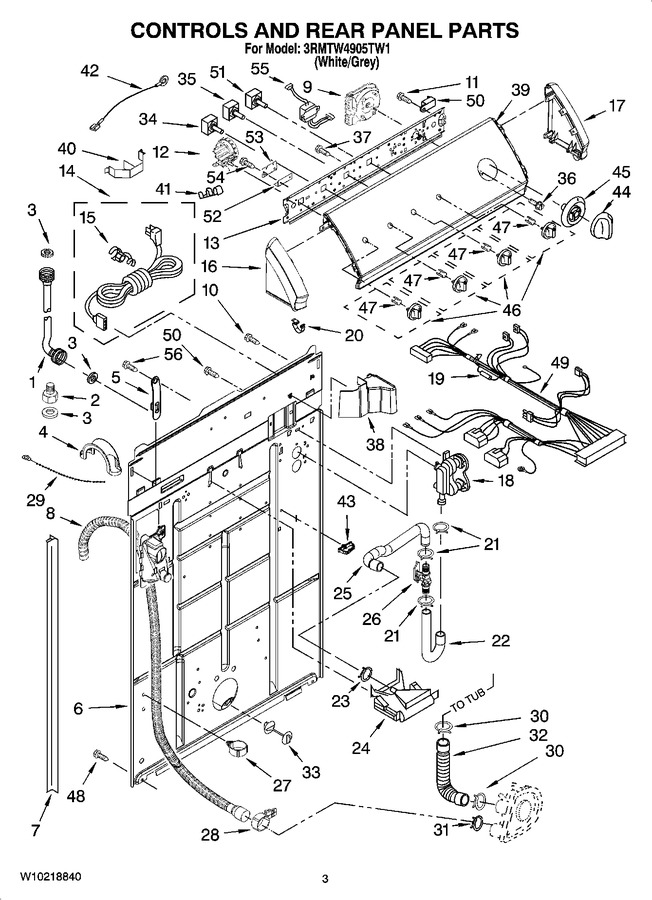

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10615831		Hose, Water Inlet (red)   (Replaces: 3949382)				$ 98.71
1	WPW10615809		Hose, Water Inlet (blue)   (Replaces: 3949383)				$ 99.72
2	WP3357397		Adapter, Water Inlet Hose   (Replaces: 3357397)				$ 89.25
3	WP16123		Washer, Water Inlet Hose (1-1/16 X 5/8)   (Replaces: W10242307)				$ 7.70
4	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10096921		Drain Hose Assembly (includes Items 27 & 28)   (Replaces: W10096921)			Immediately	$ 67.38
9	WPW10222221		Timer, Control (50 Hz.) (motor Not A Service Part)   (Replaces: W10222221)				$ 339.81
10	W10080580		Screw, Ground		Appelez-nous	-
11	W10080280		Screw, 8-18 X 3/8		Appelez-nous	-
12	W10339250		Switch, Water Level   (Replaces: W10213206)				$ 211.80
13	8559504		Bracket, Control		Appelez-nous	-
14	W10111552		Cord, Power		Appelez-nous	-
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	W10128464		Cap, End (l.h.) (includes Item 20)		Appelez-nous	-
17	W10128463		Cap, End (r.h.) (includes Item 20)		Appelez-nous	-
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 288.04
19	WPW10111181		Fuse (in Harness)   (Replaces: W10111181)				$ 33.15
20	WP8312709		Clip, Console   (Replaces: W10129041)			Immediately	$ 16.35
21	WP596669		Clamp, Hose   (Replaces: W10117299)			Immediately	$ 8.40
22	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 27.21
23	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WP3349365		Hose, Sensor (uppper)   (Replaces: 3349365)				$ 21.34
26	3352282		Sensor, Inline				$ 66.68
27	8541667		Clamp, Hose				$ 5.86
28	8541668		Clamp, Hose				$ 21.26
29	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
30	WP616099		Clamp, Hose   (Replaces: W10094820)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: W10112110)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: W10116973)			Immediately	$ 26.68
33	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
34	W10168360		Switch, Water Temperature				$ 139.27
35	W10168264		Switch, Rotary				$ 126.34
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	W10130933		Screw, Ground		Appelez-nous	-
38	8314879		Shield, Inlet Valve		Appelez-nous	-
39	W10115415		Panel, Console		Appelez-nous	-
40	8055003		Clip, Harness & Pressure Hose				$ 36.24
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
42	3398893		Wire, Ground		Appelez-nous	-
43	3352944		Clip, Harness		Appelez-nous	-
44	W10043440		Knob, Timer				$ 24.54
45	W10117527		Dial, Timer		Appelez-nous	-
46	WPW10043430		Knob, Control   (Replaces: W10043430)				$ 61.65
47	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
48	W10080260		Screw, 10-16 X 3/8		Appelez-nous	-
49	W10133462		Harness, Wiring (for Detai See Pages 9 & 10)		Appelez-nous	-
50	3952439		Buzzer, Mini		Appelez-nous	-
51	W10150079		Switch, Rotary				$ 94.62
52	8316039		Shield, Atc		Appelez-nous	-
53	WPW10110247		Control, Atc   (Replaces: W10110247)				$ 129.44
54	W10080280		Screw, 6-20 X 3/8		Appelez-nous	-
55	3407160		Transformer		Appelez-nous	-
56	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
