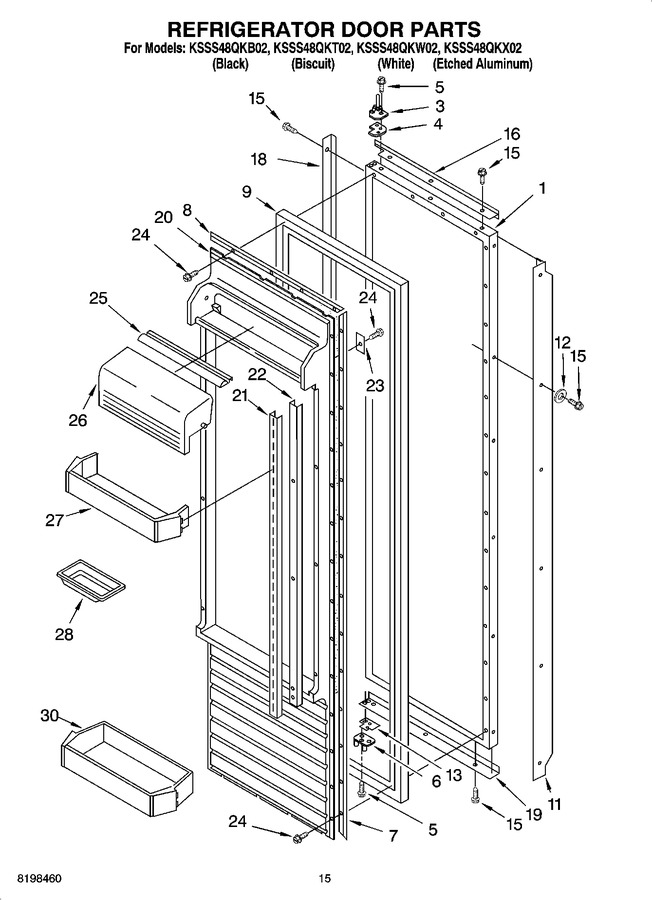

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259182 | Refrigerator Door Panel (includes Insulation) |
|
- | |||||
| 3 | W11724512 | Hinge Assembly, Top (Replaces: 2266854) |
|
$ 312.50 | |||||
| 4 | 2256381 | Door Spacer, Top |
|
$ 24.49 | |||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom (Replaces: 2256389) |
|
Immediately | $ 91.01 | ||||
| 7 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 8 | 1112542 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 9 | 2188499 | Door Gasket, Magnetic |
|
- | |||||
| 11 | 2005952 | Handle, Door (etched Aluminum) |
|
- | |||||
| 11 | 2005953 | Handle, Door (white) |
|
- | |||||
| 11 | 2005956 | Handle, Door (black) |
|
- | |||||
| 11 | 2005955 | Handle, Door (biscuit) |
|
- | |||||
| 12 | 2001230 | Washer |
|
$ 12.34 | |||||
| 13 | 2257637 | Door Spacer, Bottom |
|
$ 15.45 | |||||
| 15 | W10825422 | Screw (white) (Replaces: 8281251) |
|
$ 11.36 | |||||
| 15 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 15 | WP8281250 | Screw Stainless Steel (Replaces: 8281250) |
|
$ 11.42 | |||||
| 15 | 8281253 | Screw (biscuit) |
|
- | |||||
| 16 | 2005769 | Trim (top) (biscuit) |
|
- | |||||
| 16 | 2005015 | Trim (top) (white) |
|
- | |||||
| 16 | 2005841 | Trim (top) (black) |
|
- | |||||
| 16 | 100005989 | Trim (top) (etched Aluminum) (Replaces: 2005012) |
|
$ 14.76 | |||||
| 18 | 2005968 | Trim (side) (white) |
|
- | |||||
| 18 | 2005967 | Trim, Side (etched Aluminum) |
|
- | |||||
| 18 | 2005970 | Trim (side) (biscuit) |
|
- | |||||
| 18 | 2005971 | Trim, Side (black) |
|
- | |||||
| 19 | 2215995B | Trim (bottom) (black) |
|
- | |||||
| 19 | 2215995 | Trim (bottom) (etched Aluminum) |
|
- | |||||
| 19 | 2215995W | Trim (bottom) (white) |
|
- | |||||
| 19 | 2215995T | Trim (bottom) (biscuit) |
|
- | |||||
| 20 | 1113950 | Panel, Interior Door |
|
- | |||||
| 21 | 1113949 | Ladder, Shelf (2) |
|
- | |||||
| 22 | 1113948 | Retainer, Shelf Ladder (2) |
|
- | |||||
| 23 | 1112514 | Back Up Plate (8) |
|
- | |||||
| 24 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 25 | 1113955 | Gasket |
|
- | |||||
| 26 | 2003465 | Door, Utility Bin |
|
- | |||||
| 27 | 1113974 | Door Shelf (3) |
|
$ 78.21 | |||||
| 28 | 2165792 | Butter Tray |
|
- | |||||
| 30 | 2006381 | Shelf, Gallon Door |
|
- |
