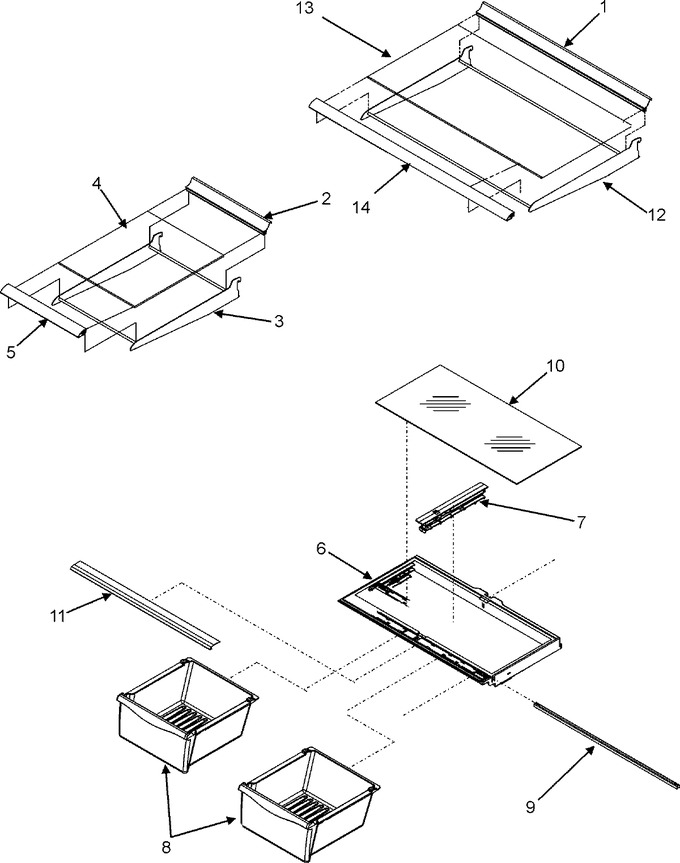

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP10946013		Extr, Full Shelf (rear)   (Replaces: 10946013)	10			$ 131.84
2	10946012		Extr, Rear Shelf	10	Appelez-nous	-
3	67003400		Frame, Glass Shelf	10			$ 33.00
4	12204808		Glass Shelf	10			$ 27.75
5	10459930		Extr, Front Shelf	10			$ 42.17
6	WPW10671240		Frame, Crisper   (Replaces: 67001153)	10		Immediately	$ 138.10
7	WPW10671238		Rail, Center Crisper   (Replaces: 67001057)	10		Immediately	$ 118.46
8	W10833528		Pan, Crisper   (Replaces: 67002569)	10		Immediately	$ 139.95
9	WP12227302WD		Brace, Crisper E-ct   (Replaces: 67001155)	10			$ 111.60
10	WP67006877		Glass, Crisper   (Replaces: 67001156)	10		Immediately	$ 209.75
11	67003401		Extr, Front Crisper	10	Appelez-nous	-
12	W10840992		Frame, Full Shelf   (Replaces: 10460115)	10			$ 226.38
13	WP12204809		Glass, Full Shelf   (Replaces: 12204809)	10			$ 251.22
14	10459931		Extr, Full Shelf (frt)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
