SELECT A DIAGRAM

01 - Top And Cabinet Parts

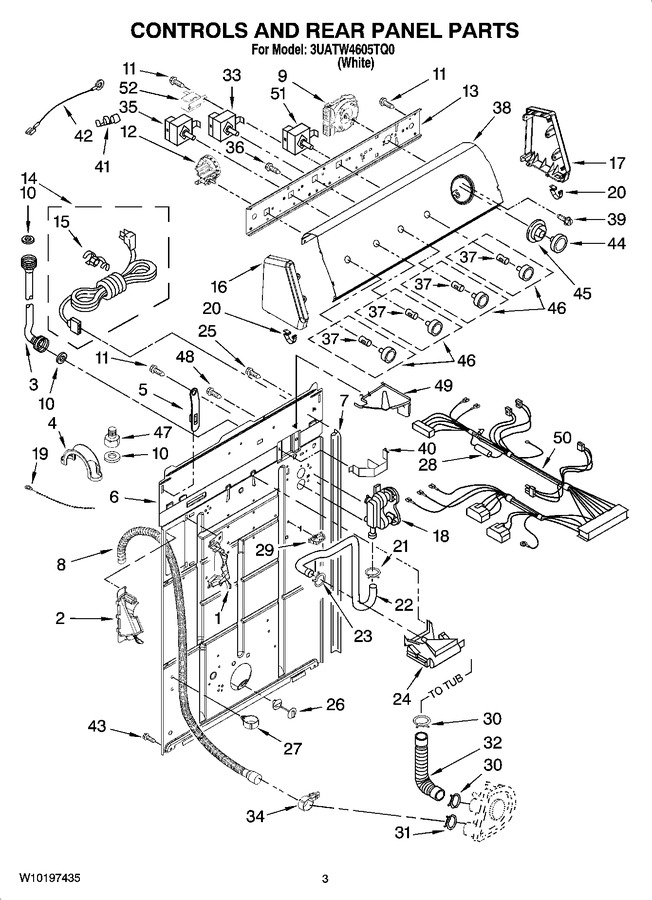

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10096921		Bucket, Drain Hose (left Half)   (Replaces: 8541669)			Immediately	$ 67.38
2	WPW10096921		Bucket, Drain Hose (right Half)   (Replaces: 8541658)			Immediately	$ 67.38
3	WPW10615809		Hose, Water Inlet (blue)   (Replaces: 3949383)				$ 99.72
3	WPW10615831		Hose, Water Inlet (red)   (Replaces: 3949382)				$ 98.71
4	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10096921		Drain Hose Assembly (includes Items 27 & 34)   (Replaces: W10122138)			Immediately	$ 67.38
9	WPW10222216		Timer, Control (50 Hz.) (motor Not A Service Part)   (Replaces: W10106010)				$ 350.28
10	WP16123		Washer, Water Inlet Hose (1-1/16 X 5/8)   (Replaces: 3976300)				$ 7.70
11	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10339334		Switch, Water Level   (Replaces: 8577845)			Immediately	$ 198.14
13	8579677		Bracket, Control		Appelez-nous	-
14	W10111552		Cord, Power		Appelez-nous	-
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	8579686		Cap, End (l.h.) (includes Item 20)				$ 33.78
17	8579685		Cap, End (r.h.) (includes Item 20)				$ 33.22
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 288.04
19	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
20	WP8312709		Clip-console (2)   (Replaces: 8312709)			Immediately	$ 16.35
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
27	8541667		Clamp, Hose				$ 5.86
28	WPW10111181		Fuse (in Harness)   (Replaces: W10111181)				$ 33.15
29	3352944		Clip, Harness		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	WPW10168262		Switch, Rotary   (Replaces: W10168262)				$ 129.76
34	8541668		Clamp, Hose				$ 21.26
35	WPW10168256		Switch, Water Temperature   (Replaces: W10168256)			Immediately	$ 128.81
36	3400073		Screw, Ground		Appelez-nous	-
37	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
38	W10115400		Panel, Console		Appelez-nous	-
39	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
40	8055003		Clip, Harness & Pressure Hose				$ 36.24
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
42	3398893		Wire, Ground		Appelez-nous	-
43	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
44	W10110061		Knob, Timer				$ 41.35
45	W10110062		Dial, Timer				$ 20.98
46	WPW10110063		Knob, Control   (Replaces: W10110063)			Immediately	$ 56.31
47	WP3357397		Adapter, Water Inlet Hose   (Replaces: 3357397)				$ 89.25
48	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
49	8539874		Shield, Inlet Valve				$ 7.01
50	W10111600		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
51	WPW10168257		Switch, Rotary   (Replaces: W10168257)				$ 133.33
52	3952439		Buzzer, Mini		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
