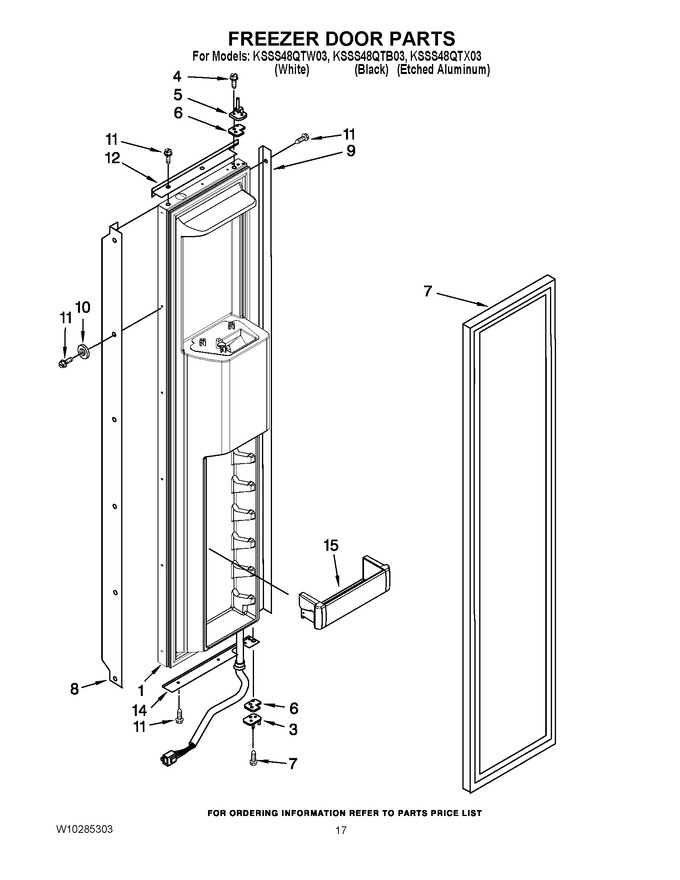

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193495		Freezer Door (includes No.14)		Appelez-nous	-
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 60.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 297.62
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 352.23
8	2316844S		Handle, Door (stainless Steel)				$ 225.63
8	2316844B		Handle, Door (black)		Appelez-nous	-
8	2316844W		Handle, Door (white)		Appelez-nous	-
9	2005964		Trim-door, Side (brushed Aluminum)		Appelez-nous	-
9	2005966		Trim-door, Side (black)		Appelez-nous	-
9	2005963		Trim-door, Side (white)		Appelez-nous	-
10	2001230		Washer				$ 12.34
11	W10825422		Screw   (Replaces: 8281251)				$ 10.82
12	2005887		Trim-door, Top (black)		Appelez-nous	-
12	2005027		Trim-door, Top (brushed Aluminum)		Appelez-nous	-
12	2005024		Trim-door, Top (white)		Appelez-nous	-
14	2215986B		Trim-door, Bottom (black)		Appelez-nous	-
14	2215986W		Trim-door, Bottom (white)		Appelez-nous	-
14	2215986S		Trim-door, Bottom (stainless Steel)		Appelez-nous	-
15	W11590561		Bin, Door (3)   (Replaces: 2222777)				$ 89.74

    View Diagram in Separate Window       Print Part List
