Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2252330 Refrigerator Door (includes Item 9) Appelez-nous -
2 8531728 Nameplate Appelez-nous -
3 W11724512 Hinge Assembly, Top   (Replaces: 2266854) Special Order $ 312.50

4 2256381 Spacer-door, Top Special Order $ 24.49

5 W11474472 Screw   (Replaces: 489282) In-Stock Immediately $ 8.63

6 2302878 Hinge Assembly, Bottom   (Replaces: 2256389) In-Stock Immediately $ 91.01

7 W11448696 Rail, Lid   (Replaces: 2222796) Special Order $ 172.93

8 W11448696 Gasket, Utility Bin   (Replaces: 2222982) Special Order $ 172.93

9 WP2266902 Door Gasket, Magnetic   (Replaces: 2222811) Special Order $ 330.30

10 2252309M Door Skin (meteorite) Appelez-nous -
10 2252309S Door Skin (stainless Steel) Appelez-nous -
11 2252311 Handle, Door (stainless Steel) Appelez-nous -
12 WP308544 Screw   (Replaces: 308544) In-Stock Immediately $ 8.30

13 2257637 Door Spacer, Bottom Special Order $ 15.45

14 2258951 Door Brace, Corner Special Order $ 33.35

15 WP8281250 Screw Stainless Steel   (Replaces: 8281250) Special Order $ 11.42

16 2266878 Filler, Door Appelez-nous -
17 2005433 Spacer, Door (top) Special Order $ 23.33

18 2005030 Spacer, Door Hinge Side Appelez-nous -
19 2004934 Spacer, Door Bottom Appelez-nous -
21 WPW10323173 End Cap (left Side)   (Replaces: 2222920) Special Order $ 8.60

21 WPW10323172 End Cap (right Side)   (Replaces: 2222919) Special Order $ 8.60

25 W10323042 Bin, Utility (center)   (Replaces: 2222922) Special Order $ 223.93

26 W11448696 Door, Utility Bin   (Replaces: 2222925) Special Order $ 172.93

27 W10323599 Door Shelf (3)   (Replaces: 2222773) Special Order $ 146.61

28 2165792 Butter Tray Appelez-nous -
29 W10759522 Screw   (Replaces: 488568) Special Order $ 8.24

30 W10323747 Shelf, Gallon Door   (Replaces: 2222770) Special Order $ 145.36

32 2005290 Spacer, Door (handle Side) Special Order $ 130.36


    View Diagram in Separate Window     Print Icon   Print Part List

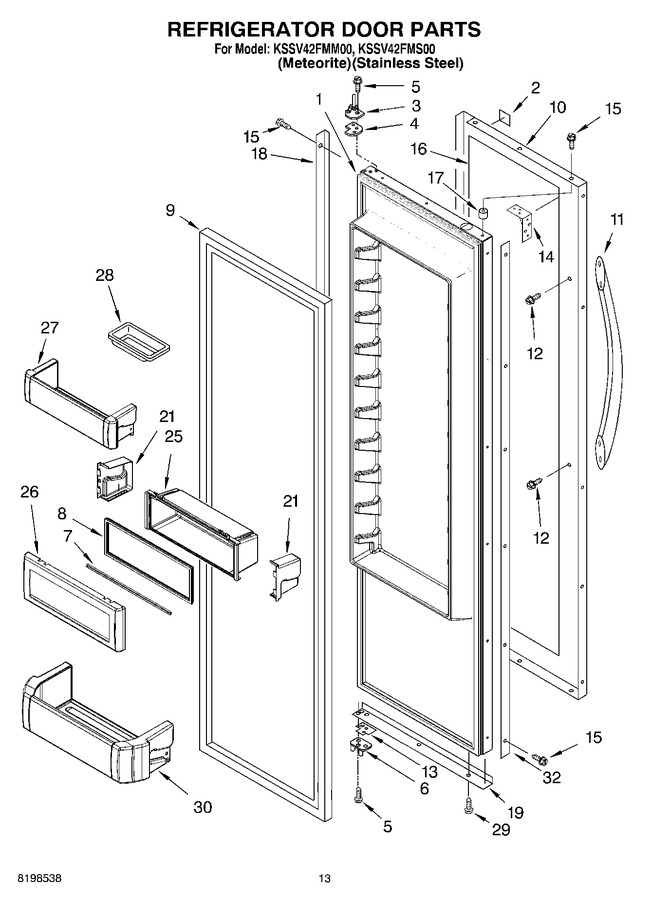

Diagram for KSSV42FMM00
