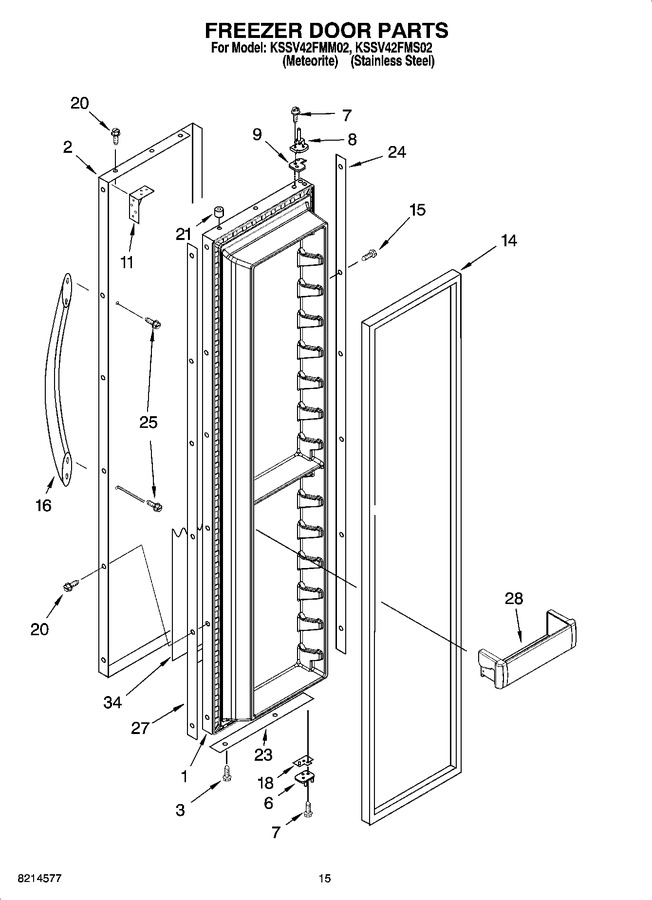

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252327		Freezer Door (includes 14)		Appelez-nous	-
2	2252310M		Skin, Door (meteorite)		Appelez-nous	-
2	2252310S		Skin, Door (stainless Steel)		Appelez-nous	-
3	W10759522		Screw   (Replaces: 488568)				$ 8.24
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
11	2258951		Brace, Door-corner				$ 33.35
14	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.72
16	2252311		Handle, Door (stainless Steel)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2005433		Spacer, Top				$ 23.33
23	2004932		Spacer, Door Bottom		Appelez-nous	-
24	2005030		Spacer, Hinge Side		Appelez-nous	-
25	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
27	2309058		Spacer, Handle Side		Appelez-nous	-
28	W10323602		Shelf Bin (6)   (Replaces: 2222776)				$ 98.03
34	2266883		Filler, Door		Appelez-nous	-
