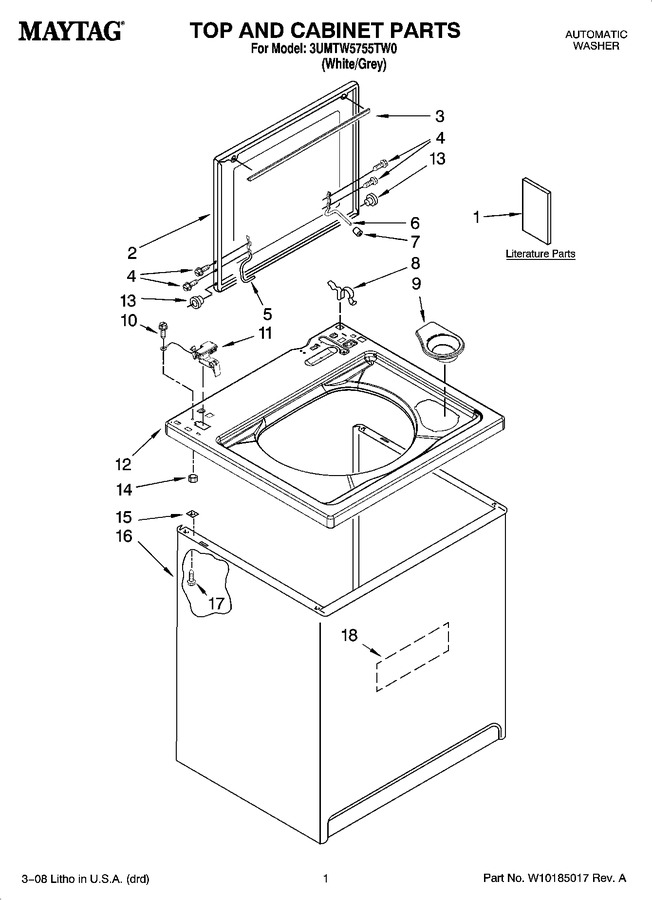

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10131593		Feature Sheet (english)		Appelez-nous	-
1	W10121779		Wiring Diagram		Appelez-nous	-
1	W10117897		Feature Sheet (arabic)		Appelez-nous	-
1	W10131567		Use & Care Guide (english)		Appelez-nous	-
1	W10117891		Use & Care Guide (arabic)		Appelez-nous	-
2	W10171568		Lid		Appelez-nous	-
3	8054939		Seal, Lid				$ 50.57
4	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.55
5	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
6	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 31.04
7	19119		Bumper, Lid Hinge				$ 5.75
8	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 8.19
9	8565967		Dispenser, Bleach		Appelez-nous	-
10	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
11	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
12	8543488		Top		Appelez-nous	-
13	8319539		Bearing, Lid Hinge (2)				$ 5.51
14	W10080180		Nut, Hex   (Replaces: 8533959)				$ 14.15
15	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 8.07
16	63424		Cabinet				$ 388.52
17	WP3390631		Screw 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 8.25
18	3976348		Absorber, Sound				$ 37.92
