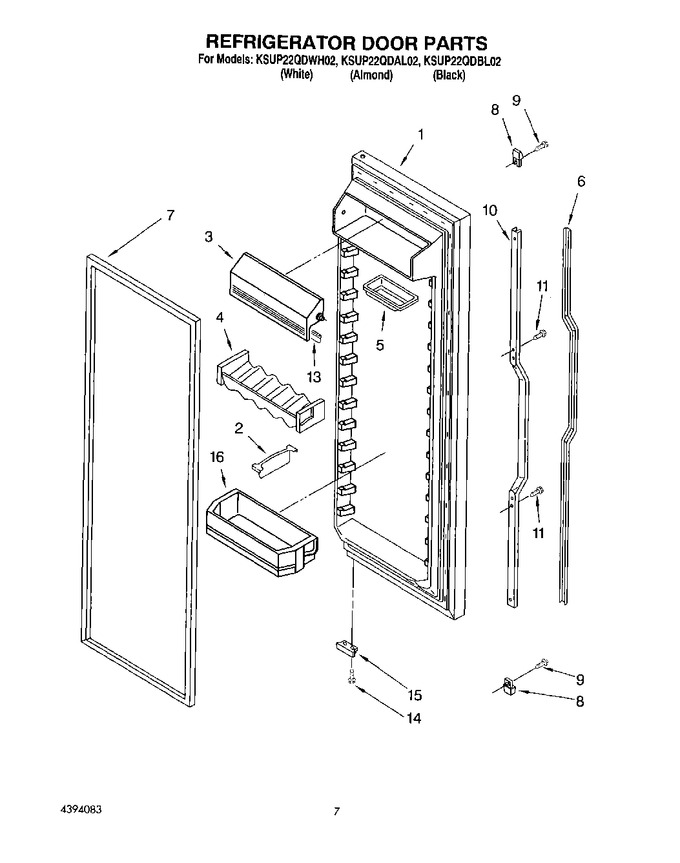

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2189682		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2189683		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
1	2194017		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
2	2171283		Load, Lock (4)		Appelez-nous	-
3	2171078		Door, Compartment		Appelez-nous	-
4	1125981		Holder, Beverage		Appelez-nous	-
5	1125936		Butter, Tray		Appelez-nous	-
6	2173830		Insert, Handle (white)		Appelez-nous	-
6	2173832		Insert, Handle (black)		Appelez-nous	-
6	2173831		Insert, Handle (almond)		Appelez-nous	-
7	2159073		Door Gasket, Magnetic (service) (mist Beige)				$ 317.32
7	2159081		Door Gasket, Magnetic (service) (black)				$ 319.60
8	2173826		End Cap, Handle		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	2173827		Retainer, Insert		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 7.82
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2155329		Bracket, Door Stop (black)		Appelez-nous	-
15	2155331		Bracket, Door Stop (chrome)		Appelez-nous	-
16	4318417		Handle Inserts (black Grille Kit)		Appelez-nous	-
16	2171063		Shelf Bin (4)		Appelez-nous	-
16	4318336		Trim Kit		Appelez-nous	-
16	4210348		Acrylic Panel Kit (black)		Appelez-nous	-
16	4211148		Acrylic Panel Kit (white)		Appelez-nous	-
16	4211147		Acrylic Panel Kit (almond)		Appelez-nous	-
16	4318339		Handle Inserts (black)		Appelez-nous	-
16	4318340		Handle Inserts (woodgrain)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
