SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner

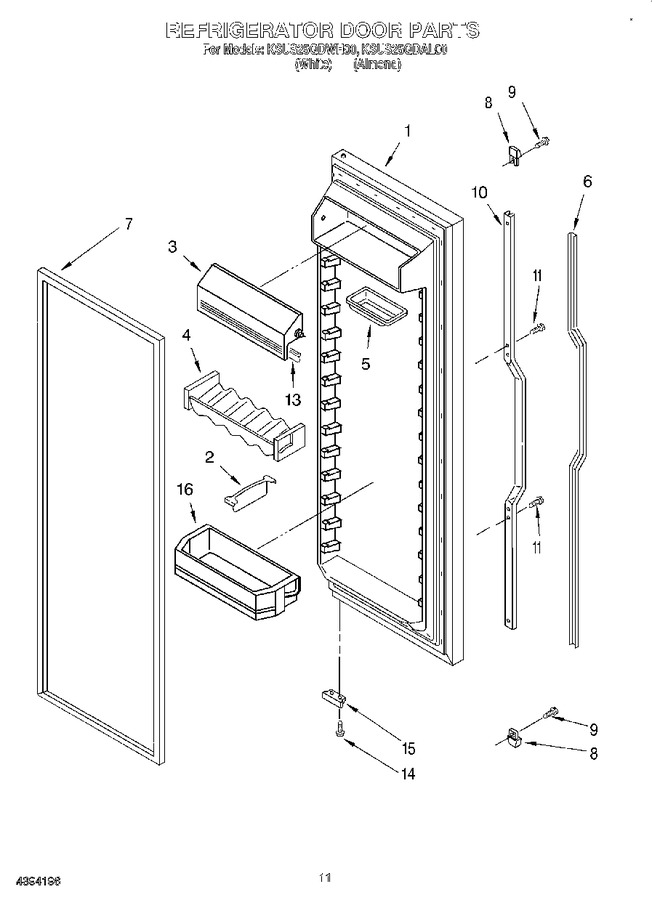

06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Air Flow, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2189684		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2189685		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
2	2171283		Load, Lock (4)		Appelez-nous	-
3	2171078		Door, Compartment		Appelez-nous	-
4	1125981		Holder, Beverage		Appelez-nous	-
5	1125936		Butter, Tray		Appelez-nous	-
6	2173825		Insert, Handle (white)		Appelez-nous	-
6	2173828		Insert, Handle (almond)		Appelez-nous	-
7	2159075		Door, Gasket Magnetic (service)			Immediately	$ 333.00
8	2173826		End Cap, Handle		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	2173824		Retainer, Insert		Appelez-nous	-
11	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
13	2159124		Gasket		Appelez-nous	-
14	WP999367		Screw   (Replaces: 489367)				$ 8.56
15	2155332		Bracket, Door Stop		Appelez-nous	-
16	4318417		Handle Inserts (black Grille Kit)		Appelez-nous	-
16	4210348		Acrylic Panel Kit (black)		Appelez-nous	-
16	4211148		Acrylic Panel Kit (white)		Appelez-nous	-
16	4211147		Acrylic Panel Kit (almond)		Appelez-nous	-
16	4318339		Handle Inserts (black)		Appelez-nous	-
16	4318340		Handle Inserts (woodgrain)		Appelez-nous	-
16	2171063		Shelf Bin (4)		Appelez-nous	-
16	4318336		Trim Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
