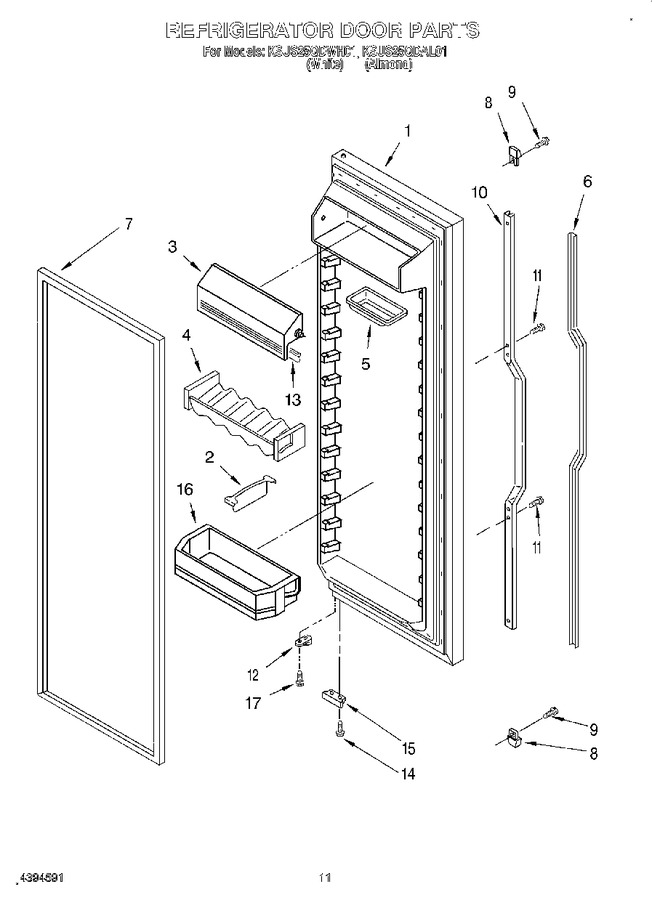

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194233N		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
1	2194233W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
2	2171283		Load, Lock (4)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2173825		Insert, Handle (white)		Appelez-nous	-
6	2173828		Insert, Handle (almond)		Appelez-nous	-
7	2159075		Door, Gasket Magnetic (service)			Immediately	$ 333.00
8	2173826		End Cap, Handle		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	2194899		Retainer, Insert		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 8.25
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
13	2159124		Gasket		Appelez-nous	-
14	WP999367		Screw   (Replaces: 489367)				$ 8.56
15	2155332		Bracket, Door Stop		Appelez-nous	-
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
