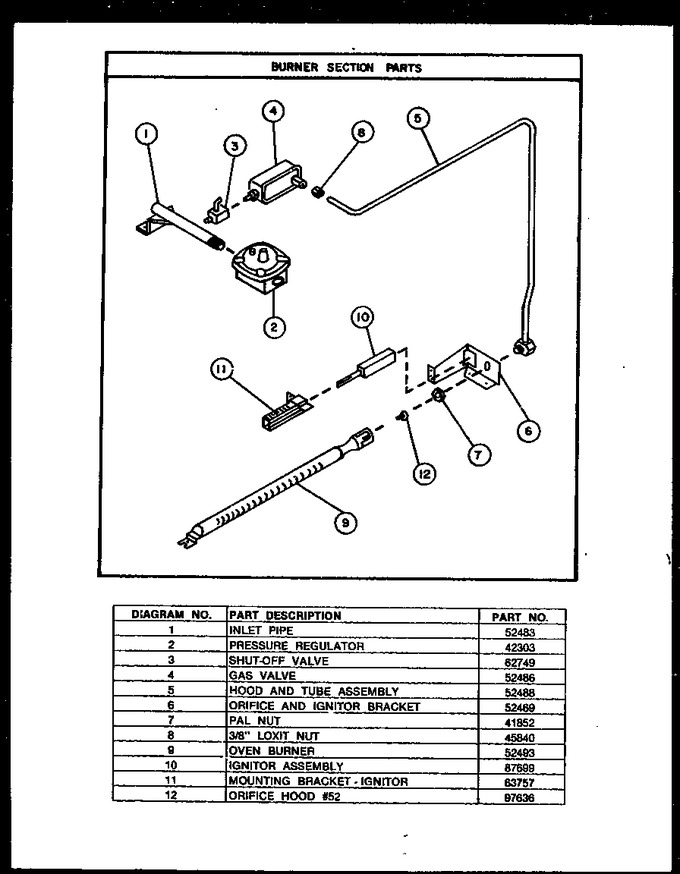

01 - Burner Section Parts
02 - Oven / Broiler Parts
03 - Oven Cabinet Section
04 - Oven Door Parts
05 - Page 1
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 52483 | Inlet Pipe |
|
- | |||||
| 2 | 0042303 | Regulator |
|
- | |||||
| 3 | Y62749 | Shut-off Valve |
|
- | |||||
| 4 | 0052486 | Valve, Bake |
|
- | |||||
| 5 | 52488 | Hood And Tube Assembly |
|
- | |||||
| 6 | 0052469 | Ignitor Bracket |
|
- | |||||
| 7 | Y0041852 | Pal Nut Orifice Fittings |
|
- | |||||
| 8 | Y0045840 | Loxit 3/8`` |
|
- | |||||
| 9 | Y0052493 | Burner, Oven |
|
- | |||||
| 10 | 786324 | Kit, Ignitor-bake/broil (Replaces: Y0087699) |
|
Immediately | $ 81.42 | ||||
| 11 | 63757 | Mounting Bracket - Ignitor |
|
- | |||||
| 12 | 0097636 | Hood Orif Nbr 52 |
|
- |
