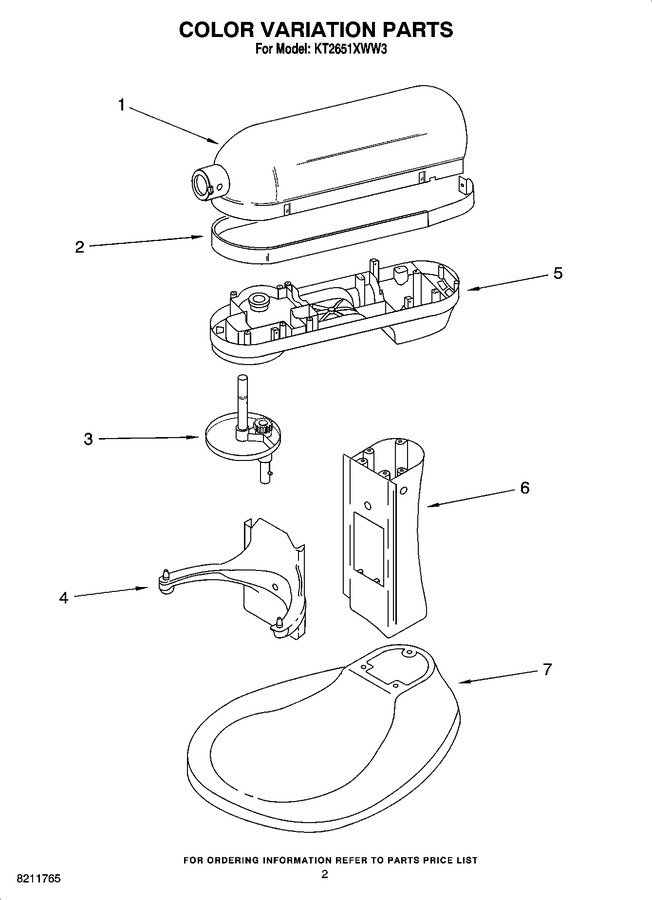

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit And Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 2 | 9703638 | Trim Band (white On White) |
|
- | |||||
| 3 | WP9708172 | Planetary (white) (Replaces: 9708172) |
|
Immediately | $ 73.84 | ||||
| 4 | 9703674 | Bowl Support-white |
|
$ 74.91 | |||||
| 5 | 9706047 | Lower Gearcase (white) |
|
$ 41.51 | |||||
| 6 | 9703673 | Column-white |
|
$ 81.26 | |||||
| 7 | 9703690 | Base & Foot Assembly (white) |
|
- |
