SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator

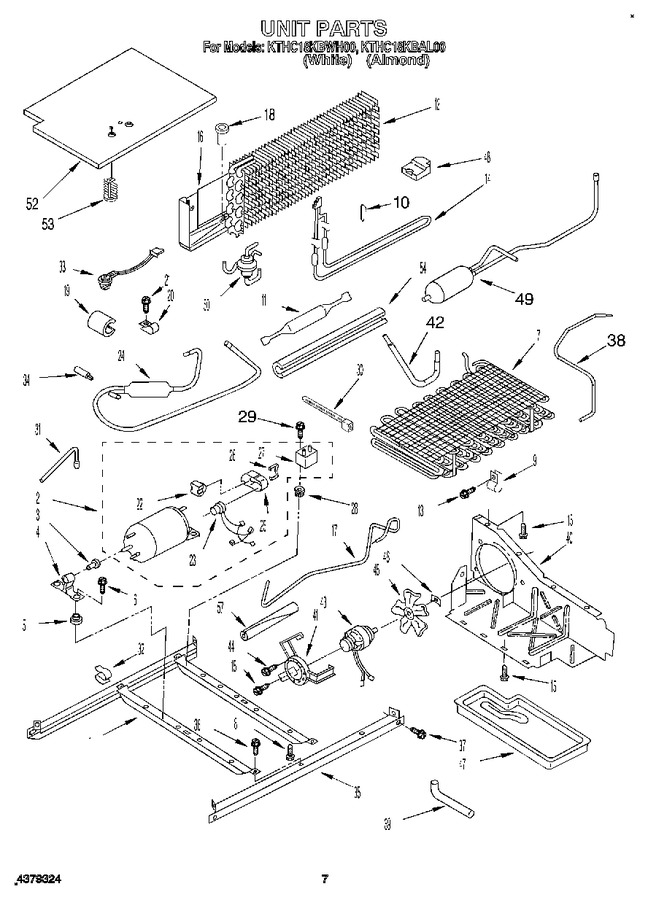

04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159747		Unit, Frame		Appelez-nous	-
2	2154564		Compressor Kit Includes Items 22 (23, 25, 26 & 27)		Appelez-nous	-
3	1105219		Grommet, Compressor Bracket		Appelez-nous	-
4	1105220		Bracket, Mounting		Appelez-nous	-
5	1105200		Grommet, Compressor		Appelez-nous	-
6	489334		Screw		Appelez-nous	-
7	2154008		Condenser Assembly		Appelez-nous	-
8	WP489464		Screw, 8 X 3/8   (Replaces: 489337)			Immediately	$ 8.38
9	1108033		Clamp		Appelez-nous	-
10	2149120		Support, Heater		Appelez-nous	-
11	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
12	2153977		Evaporator Assembly		Appelez-nous	-
13	WP489128		Screw   (Replaces: 488500)				$ 11.40
14	2162020		Heater, Defrost		Appelez-nous	-
15	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
16	2153973		Drain Pan & Heat Shield		Appelez-nous	-
17	2154028		Tube, Discharge		Appelez-nous	-
18	2172811		Drain Fitting Heat Shield		Appelez-nous	-
19	WP2158826		Dampener   (Replaces: 515497)				$ 1.82
20	510716		Tube Clamp		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	N/A		Relay (see Overload)		Appelez-nous	-
23	2159611		Overload (production (includes Relay))		Appelez-nous	-
23	2154945		Overload (service (includes Relay))		Appelez-nous	-
24	2169366		Muffler & Tube Assembly		Appelez-nous	-
25	2154452		Terminal Cover		Appelez-nous	-
26	1105222		Strap, Cover		Appelez-nous	-
27	WPW10662129		Running, Capacitor   (Replaces: 1118576)			Immediately	$ 58.86
28	509812		Screw Grommet		Appelez-nous	-
29	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
30	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 8.30
31	2154090		Tube, Process		Appelez-nous	-
32	548745		Clip, Wire		Appelez-nous	-
33	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 47.89
34	1108065		Capacitor, Start		Appelez-nous	-
35	1116622		Unit, Rail		Appelez-nous	-
36	WP489427		Screw   (Replaces: 489339)				$ 7.84
37	489340		Screw		Appelez-nous	-
38	2159635		Tube-condenser To Valve		Appelez-nous	-
39	2154118		Drain Extension		Appelez-nous	-
40	2169432		Air, Baffle		Appelez-nous	-
41	2162060		Fan, Mounting Bracket		Appelez-nous	-
42	2159636		Tube-heat Loop To Valve		Appelez-nous	-
43	833697		Motor, Fan   (Replaces: 2162431)			Immediately	$ 88.15
44	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
45	1115135		Fan Blade		Appelez-nous	-
46	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
47	1116604		Tray, Evaporator		Appelez-nous	-
48	1118017		Wedge, Air Baffle		Appelez-nous	-
49	2169353		Reservoir Assembly		Appelez-nous	-
50	2169345		Valve, Fluid		Appelez-nous	-
52	2160517		Cover, Unit Bottom		Appelez-nous	-
53	489396		Clip				$ 11.26
54	2169365		Sleeve		Appelez-nous	-
57	876764		Valve, Access(3/16``)			Immediately	$ 95.92
57	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
57	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
57	978028		Valve, Access (1/2)		Appelez-nous	-
57	978029		Valve Access (5/8``)				$ 93.85
57	978030		Valve, Access (3/4``)				$ 137.25
57	2159751		Sleeve		Appelez-nous	-
57	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
