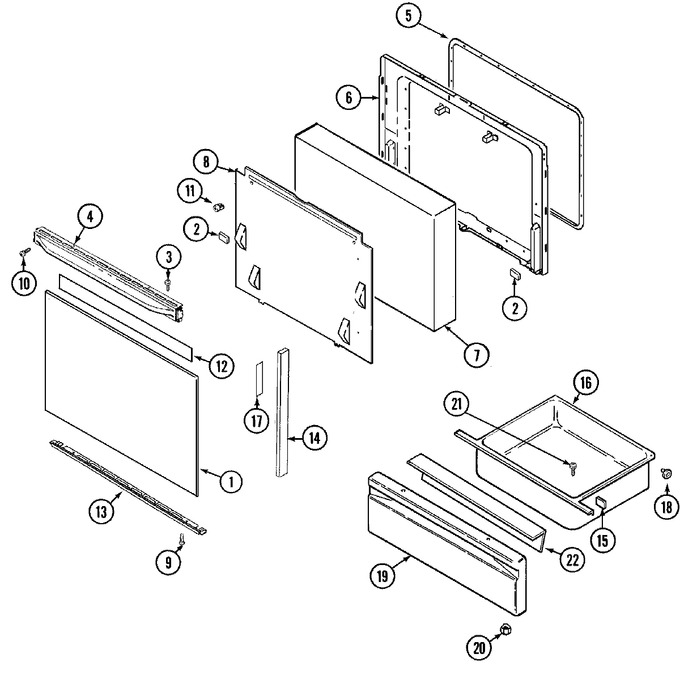

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P325-60		Glass, Door (outer-blk)	10	Appelez-nous	-
2	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 11.06
3	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	10		Immediately	$ 8.54
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 18.60
4	74003429		Handle, Door (blk)	10			$ 93.87
5	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 86.23
6	74003245		Lining, Door	10	Appelez-nous	-
7	74001842		Insulation, Door	10	Appelez-nous	-
8	3601F218-51		Baffle, Door Solid	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
11	7103P045-60		Nut, Nylon	10	Appelez-nous	-
12	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
13	74003432		Trim, Bottom (blk)	10	Appelez-nous	-
14	74003430		End Cap, Door (blk)	10			$ 59.35
15	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 11.06
16	71003042		Drawer, Storage	10	Appelez-nous	-
17	74004075		Tape	10	Appelez-nous	-
18	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
18	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 7.32
18	74003566		Roller, Drawer	10	Appelez-nous	-
19	74003407		Panel, Drawer (wht)	10	Appelez-nous	-
20	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.65
21	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 8.06
22	W11233072		Screw   (Replaces: 74004208)	10		Immediately	$ 14.72
22	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
