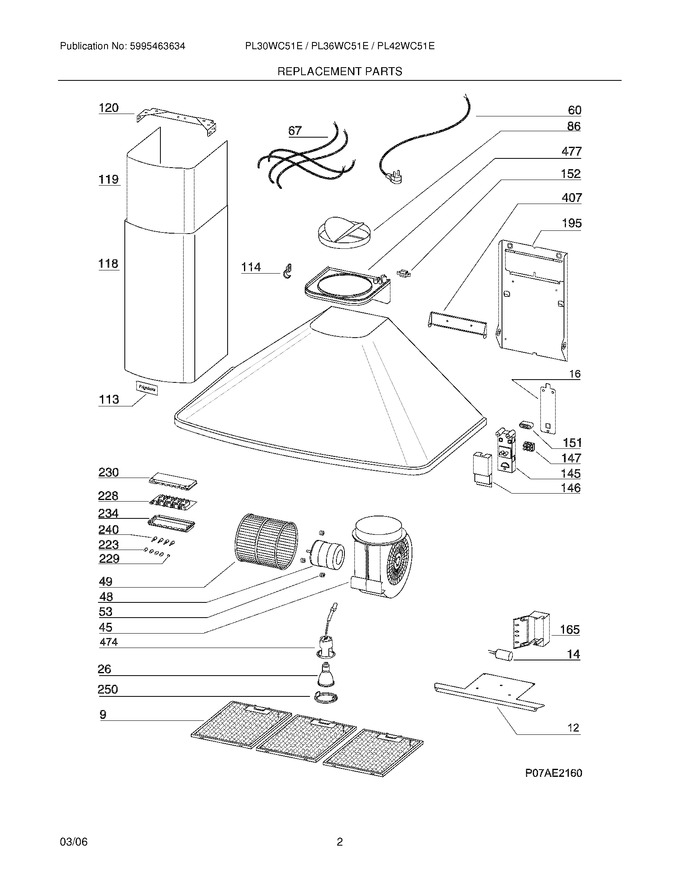

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304455033		Bracket,support ,capacitor Box		Appelez-nous	-
16	5304455036		Bracket,support ,terminal Box		Appelez-nous	-
26	5304455048		Lamp,halogen ,50 W ,120 V				$ 175.12
45	5304454955		Housing,blower Fan ,scroll		Appelez-nous	-
53	5304454958		Washer,motor Mount ,rubber				$ 63.89
113	5304454978		Nameplate		Appelez-nous	-
118	5304455052		Chimney,duct Cover ,lower Flue				$ 204.40
119	5304455053		Chimney,duct Cover ,upper Flue				$ 267.09
120	5304455055		Bracket,mounting ,upper Chimney		Appelez-nous	-
145	5304454983		Terminal Box,wiring		Appelez-nous	-
146	5304454985		Cover,terminal Box		Appelez-nous	-
147	5304454986		Clamp,wiring Junction		Appelez-nous	-
151	5304454987		Wire Stop,terminal Box		Appelez-nous	-
152	5304455051		Clamp,power Cord		Appelez-nous	-
165	5304454989		Electrical Box,capacitor		Appelez-nous	-
195	5304455043		Bracket		Appelez-nous	-
223	5304455045		Push Button,control Switch				$ 86.64
229	5304455046		Lamp,warning/pilot ,fan On		Appelez-nous	-
230	5304455041		Cover,switch Box		Appelez-nous	-
234	5304455040		Control Box,switch Board				$ 42.56
250	5304455049		Ring Nut,lamp Retainer				$ 174.52
407	5304454997		Bracket,blower Support				$ 115.27
477	5304455042		Cover,blower ,duct Connector		Appelez-nous	-
F14	5304454900		Capacitor,motor		Appelez-nous	-
F228	5304455037		Control,switch Board				$ 254.17
F240	5304455044		Actuator,switch				$ 58.61
F474	5304455047		Housing,lamp Receptacle				$ 173.17
F48	5304455030		Motor,blower				$ 436.01
F49	5304455031		Blower Wheel,fan				$ 174.56
F60	5304455035		Power Cord,electric		Appelez-nous	-
F67	5304455038		Wiring Harness		Appelez-nous	-
F86	5304454974		Discharge Collar,damper				$ 116.42
F9	5304455050		Filter,grease ,aluminum				$ 278.40
NI	5304455054		Installation Kit,mtg. Hardware		Appelez-nous	-
